The Square D LX1FK380 is a TeSys series contactor coil rated for 380-400 V AC control circuits at 40-400 Hz. It provides the electromagnetic force to switch the contactor, drawing 1100 VA inrush at 20 °C and 18 VA holding. Without a built-in suppressor module, external RC snubbing or varistor protection must be added for inductive load switching. Opening time is 100-170 ms, closing time 40-75 ms.

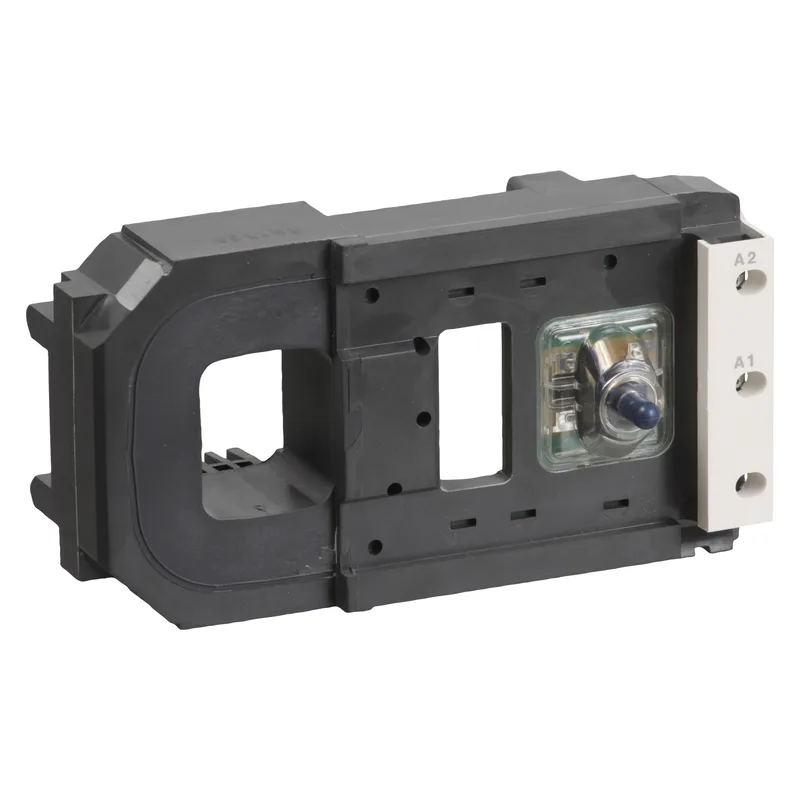

LX1FK380 TeSys Contact Coil 380VAC (Obsolete)
MPNLX1FK380
Obsolete
TeSys series contactor coil, 380-400 V AC 40-400 Hz, for Square D LX1FK380. Without built-in suppressor module. Obsolete – sourced to order.
$227.33 – $441.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 380...400 V AC 40...400 Hz |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 40...400 Hz 131 °F (55 °C)) |
| Inrush power in | 1100 VA 40...400 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 18 VA 40...400 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 100...170 ms opening 40...75 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 18 W 40...400 Hz |
| Device short name | LX1FK |
| Average resistance | 112 Ohm inrush 68 °F (20 °C) 2980 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 14.7 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
Product details
MPN
LX1FK380
