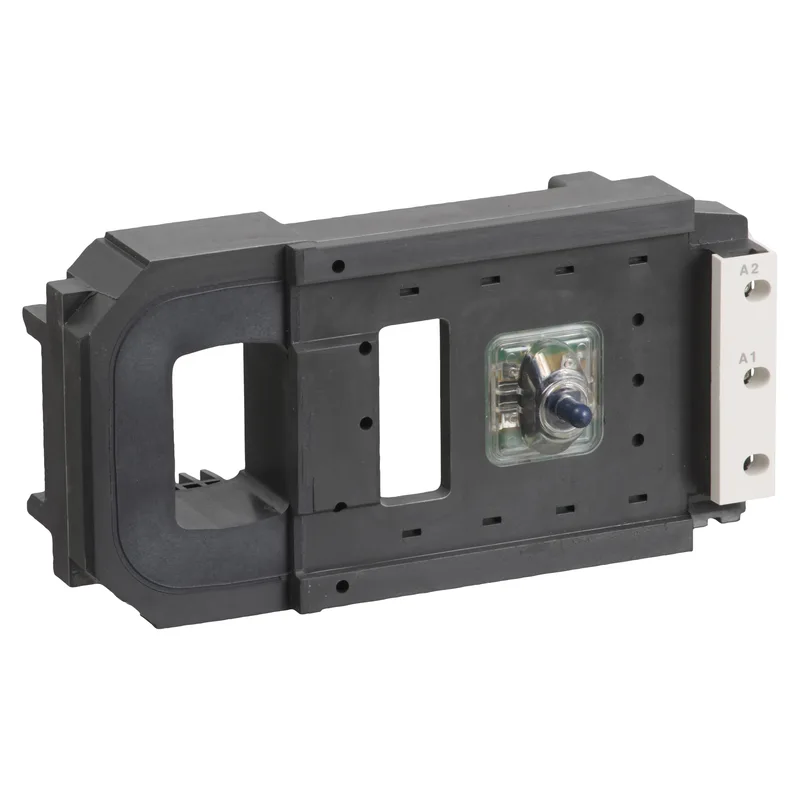

Schneider Electric LX1FL110

Schneider LX1FL110 TeSys F contactor coil, 110-120 V AC, discontinued

MPNLX1FL110
Active

Schneider LX1FL110 Contactor & Starter Coils — now discontinued, supplied from remaining surplus and broker stock.

$209.55 – $486.00Ref. price · indicative, final on quote
Schneider Electric LX1FL110 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LX1FL110 specifications
ParameterValue
Control circuit typeAC 40...400 Hz
Product or component typeContactor coil
Coil voltage110...120 V AC 40...400 Hz
Control circuit voltage limitsOperational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C))
Inrush power in1650 VA 40...400 Hz cos phi 0.9 (at 68 °F (20 °C))
Hold-in power consumption in22 VA 40...400 Hz cos phi 0.3 (at 68 °F (20 °C))
Mechanical durability5 Mcycles
RangeTeSys
CategoryUS10I1222341
Operating time100...200 ms opening 40...80 ms closing
Coil technologyWithout built-in suppressor module
Heat dissipation20 W 40...400 Hz
Device short nameLX1FL
Average resistance6.45 Ohm inrush 68 °F (20 °C) 165 Ohm holding 68 °F (20 °C)
Maximum operating rate1200 cyc/h 131 °F (55 °C)
Inductance of closed circuit1.85 H
Ambient air temperature for operation23...131 °F (-5...55 °C)

Product details

Overview

The LX1FL110 is the TeSys F contactor coil for 110-120 V AC 40-400 Hz control circuits, rated 1650 VA inrush and 22 VA holding, designed to drive the LC1F630 and LC1F1250 contactor frames. It ships without a built-in suppressor module, so an external RC snubber or varistor must be added across the coil terminals if the control circuit requires spike suppression.

Schneider discontinued the LX1FL110 on 2023-06-15; it is no longer in active production and must be sourced through surplus or broker channels.

Inrush is 1650 VA at 68 °F (20 °C); holding is 22 VA. Inrush resistance is 6.45 Ω, holding resistance is 165 Ω.

MPN
LX1FL110
