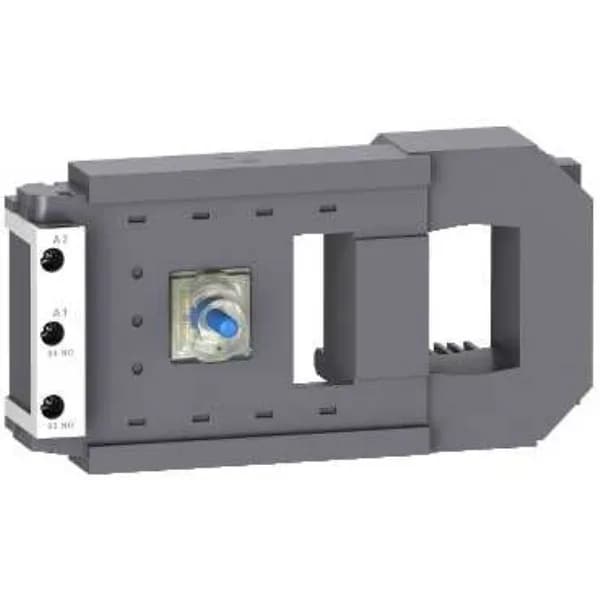

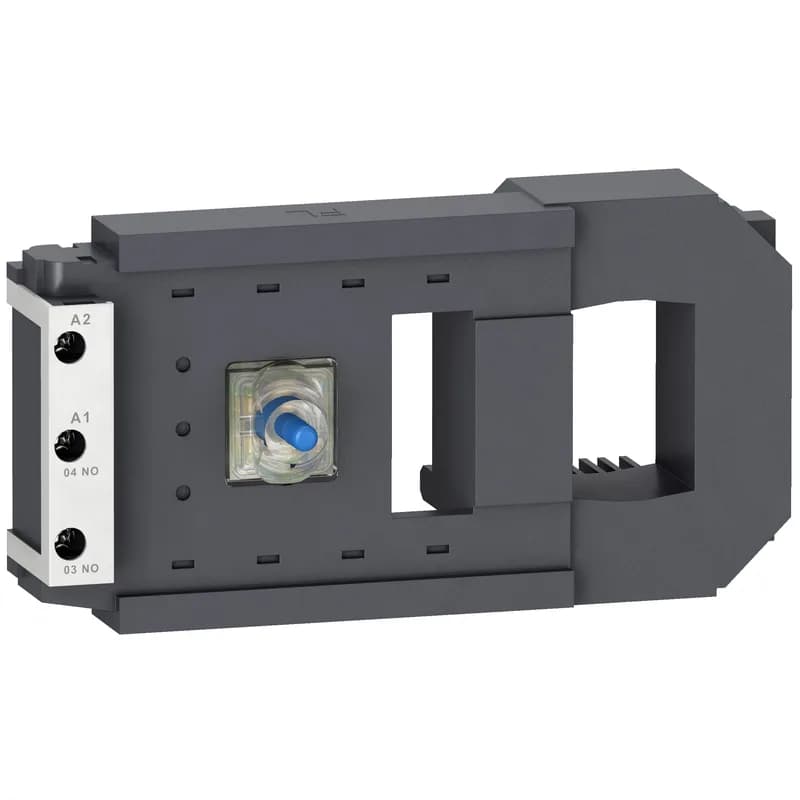

TeSys contactor coil, 220-240 V AC 40-400 Hz, LX1FL220.
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 220...240 V AC 40...400 Hz |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C)) |
| Inrush power in | 1650 VA 40...400 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 22 VA 40...400 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 5 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 100...200 ms opening 40...80 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 20 W 40...400 Hz |
| Device short name | LX1FL |
| Average resistance | 25.5 Ohm inrush 68 °F (20 °C) 730 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 1200 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 3.35 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
The LX1FL220 is the 220-240 V AC control coil for the TeSys range. It pulls in at 1650 VA and holds at 22 VA. Heat dissipation: 20 W. No built-in suppressor module.
Operating voltage tolerance: 0.85...1.1 Uc; drop-out at 0.25...0.5 Uc. Opening time 100-200 ms, closing 40-80 ms. Mechanical durability: 5 Mcycles. Max operating rate: 1200 cyc/h at 131 °F.
The component belongs to the TeSys range, Schneider's modular contactor and starter family.
