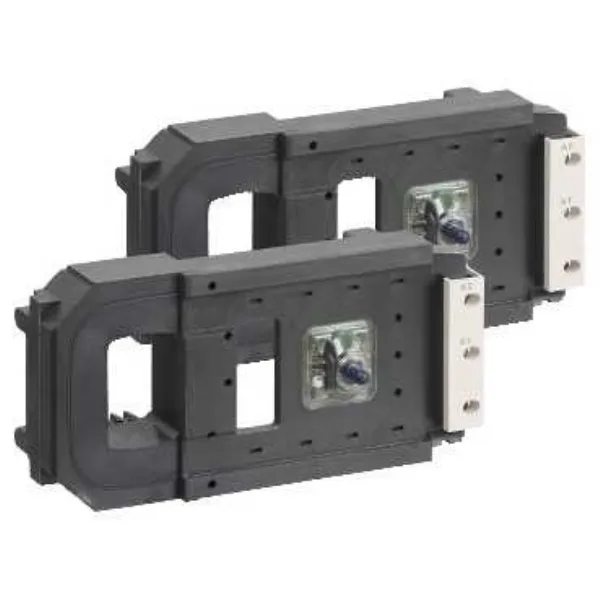

Schneider Electric LX1FX380
MPNLX1FX380
Obsolete
LX1FX380 by TELEMECANIQUE
$469.90Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 380...400 V AC 40...400 Hz |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.2...0.4 Uc 40...400 Hz 131 °F (55 °C)) |
| Inrush power in | 2100 VA 40...400 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 50 VA 40...400 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 5 Mcycles |
| Range | TeSys |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Operating time | 130...230 ms opening 40...80 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 44 W 40...400 Hz |
| Quantity per set | Set of 2 |
| Device short name | LX1FX |
| Average resistance | 60.9 Ohm inrush 68 °F (20 °C) 2780 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 600 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 2.3 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX1FX380
