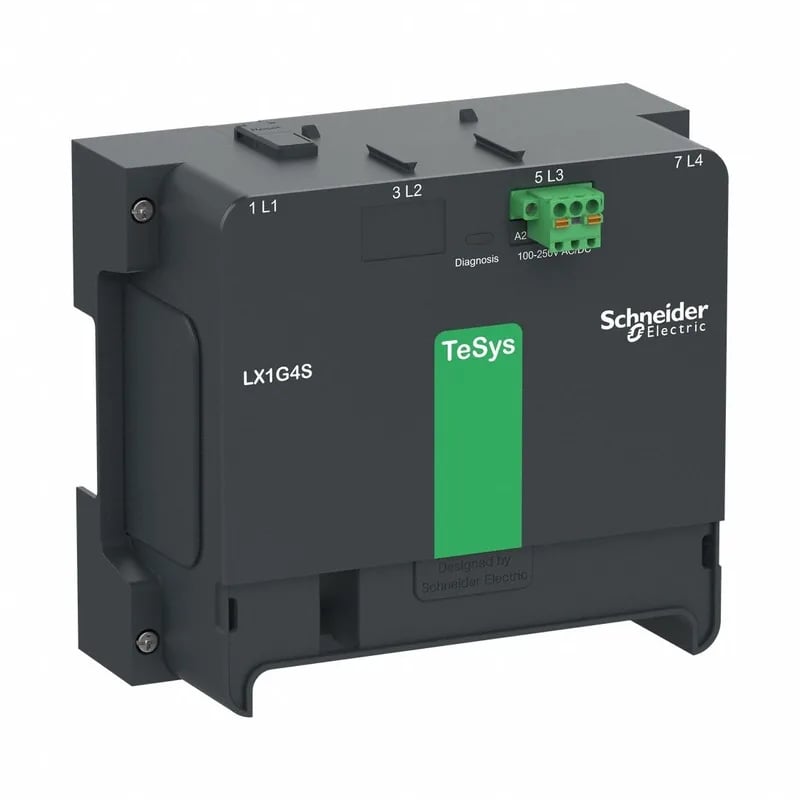

Schneider LX1G4SEHEN Contactor &Amp; Motor Starter Accessories — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Product or component type | Contactor coil |
| Coil voltage | 48...130 V AC/DC 50/60 Hz |
| Control circuit voltage limits | Operational 0.8...1.1 Uc 140 °F (60 °C)) Drop-out 0...0.45 Uc 140 °F (60 °C)) |
| Inrush power in | 1065 VA 120 V AC, 60 Hz |
| Hold-in power consumption in | 15.8 VA 120 V AC, 60 Hz |
| Poles description | 4P |
| IP degree of protection | IP20 IEC 60529 |
| Connections - terminals | Control circuit push-in termination 1 0.0003...0.004 in² (0.2...2.5 mm²) solid stranded without cable end sleeve AWG 26...AWG 12 Control circuit push-in termination 1 0.0004...0.004 in² (0.25...2.5 mm²) flexible with cable end sleeve AWG 24...AWG 14 Control circuit push-in termination 2 0.0008...0.002 in² (0.5...1.0 mm²) rigid or stranded with cable end sleeve AWG 20...AWG 18 |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | 9842.52 ft (3000 m) without derating 5000 m with derating factor |
| Depth | 3.7 in (93.0 mm) |
| Width | 7.3 in (185.0 mm) |
| Parameter | Value |
|---|---|
| Height | 6.6 in (167.0 mm) |
| Mechanical durability | 5 Mcycles |
| Standards | EN/IEC 60947-4-1 UL 60947-4-1A CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Category | US10I1222328 |
| Operating time | 20...35 ms opening 40...55 ms closing |
| Coil technology | Built-in bidirectional peak limiting |
| Quantity per set | 1 |
| Device short name | LX1G |
| Maximum operating rate | 600 cyc/mn 140 °F (60 °C) |
| Electromagnetic compatibility | EMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47 |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
| Permissible ambient air temperature around the device | -40...158 °F (-40...70 °C) at Uc |
The LX1G4SEHEN: It draws 15.8 VA at 120 V AC, 60 Hz and is rated for 5 million mechanical cycles, with push-in terminals accepting 0.2-2.5 mm² solid or stranded wire.
The LX1G4SEHEN is a 4-pole coil; its sibling LX1G3SEHEN is the 3-pole version for the same contactor frame. Pick LX1G4SEHEN when the contactor has 4 main poles; pick LX1G3SEHEN when the BOM calls for 3 poles.
