Schneider Electric LX1G4SLSEA

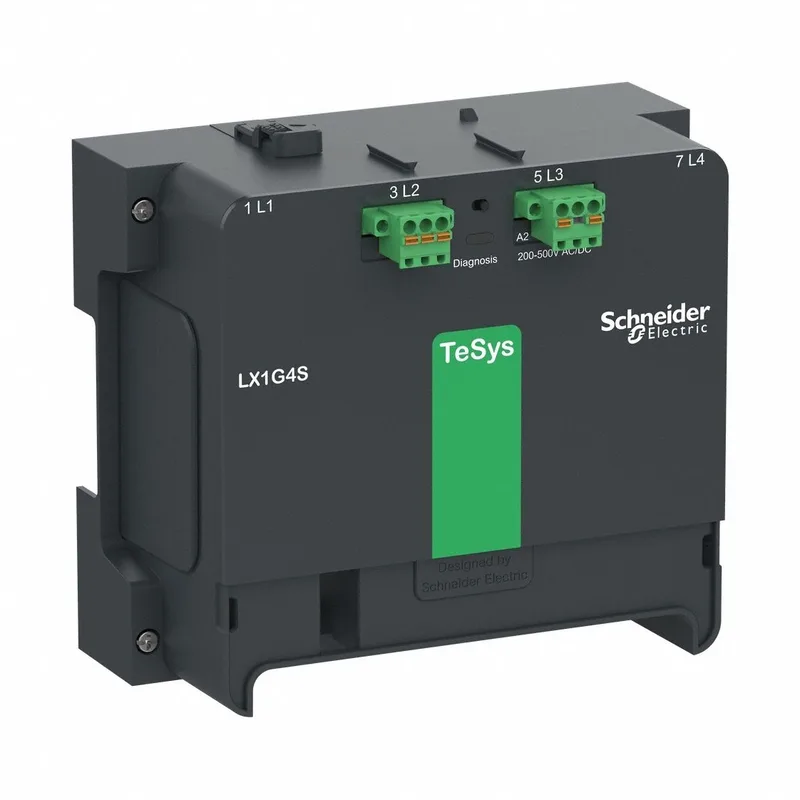

Schneider LX1G4SLSEA TeSys Contactor Coil, Obsolete

MPNLX1G4SLSEA
Obsolete

Schneider LX1G4SLSEA, TeSys range, contactor coil, 4-pole, control circuit 200-500 V AC/DC, obsolete status.

$435.81Ref. price · indicative, final on quote
Schneider Electric LX1G4SLSEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LX1G4SLSEA key specifications
ParameterValue
Product or component typeContactor coil
Coil voltage200...500 V AC/DC 50/60 Hz
Control circuit voltage limitsOperational 0.8...1.1 Uc 140 °F (60 °C)) Drop-out 0...0.45 Uc 140 °F (60 °C))
Inrush power in400 VA 480 V AC, 60 Hz
Hold-in power consumption in14.9 VA 480 V AC, 60 Hz
Poles description4P
IP degree of protectionIP20 IEC 60529
Connections - terminalsControl circuit push-in termination 1 0.0003...0.004 in² (0.2...2.5 mm²) solid stranded without cable end sleeve AWG 26...AWG 12 Control circuit push-in termination 1 0.0004...0.004 in² (0.25...2.5 mm²) flexible with cable end sleeve AWG 24...AWG 14 Control circuit push-in termination 2 0.0008...0.002 in² (0.5...1.0 mm²) rigid or stranded with cable end sleeve AWG 20...AWG 18
Pollution degree3 IEC 60947-1
Operating altitude9842.52 ft (3000 m) without derating 5000 m with derating factor
Depth3.7 in (93.0 mm)
Width7.3 in (185.0 mm)

All specifications

LX1G4SLSEA additional specifications
ParameterValue
Height6.6 in (167.0 mm)
Mechanical durability5 Mcycles
StandardsEN/IEC 60947-4-1 UL 60947-4-1A CSA C22.2 No 60947-4-1
RangeTeSys
CategoryUS10I1222328
Operating time20...35 ms opening 40...55 ms closing
Coil technologyBuilt-in bidirectional peak limiting
Quantity per set1
Device short nameLX1G
Maximum operating rate600 cyc/mn 140 °F (60 °C)
Electromagnetic compatibilityEMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

The LX1G4SLSEA is a replacement coil for Schneider TeSys contactors. It accepts a wide control voltage range of 200-500 V AC/DC, making it adaptable to various supply systems. With a mechanical durability of 5 Mcycles and an operating time of 20-35 ms opening and 40-55 ms closing, it is designed for high-cycle motor switching applications.

This coil accepts control voltage 200-500 V AC/DC. Mechanical durability is 5 Mcycles. Push-in terminals accept 0.2-2.5 mm²; IP20 rated.

The IP20 housing allows installation in protected enclosures. For higher altitudes, the coil operates without derating up to 3000 m; above that, a derating factor applies to 5000 m.

Frequently asked questions

What is the depth of the LX1G4SLSEA?

The depth is 3.7 in (93.0 mm).

What is the range of the LX1G4SLSEA?

It belongs to the TeSys range from Schneider.
