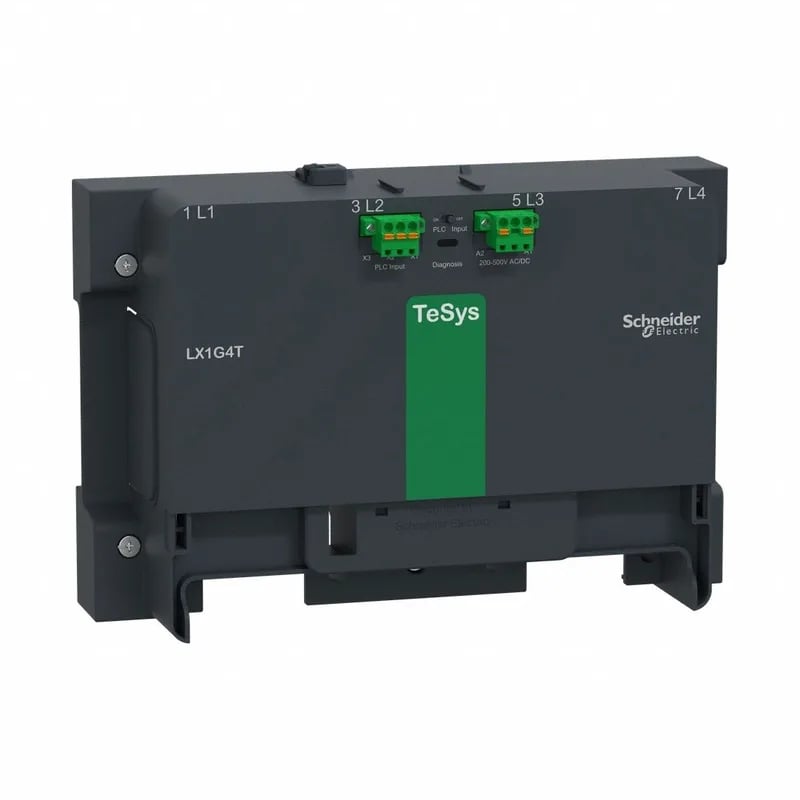

Schneider Electric LX1G4TEHEA

LX1G4TEHEA Schneider TeSys Contactor Coil, 48-130 V

MPNLX1G4TEHEA
Active

Schneider TeSys contactor coil LX1G4TEHEA, 48-130 V AC/DC, 4-pole, push-in terminals.

$421.28Ref. price · indicative, final on quote
Schneider Electric LX1G4TEHEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LX1G4TEHEA key specifications
ParameterValue
Product or component typeContactor coil
Coil voltage48...130 V AC/DC 50/60 Hz
Control circuit voltage limitsOperational 0.8...1.1 Uc 140 °F (60 °C)) Drop-out 0...0.45 Uc 140 °F (60 °C))
Poles description4P
IP degree of protectionIP20 IEC 60529
Connections - terminalsControl circuit push-in termination 1 0.0003...0.004 in² (0.2...2.5 mm²) solid stranded without cable end sleeve AWG 26...AWG 12 Control circuit push-in termination 1 0.0004...0.004 in² (0.25...2.5 mm²) flexible with cable end sleeve AWG 24...AWG 14 Control circuit push-in termination 2 0.0008...0.002 in² (0.5...1.0 mm²) rigid or stranded with cable end sleeve AWG 20...AWG 18
Pollution degree3 IEC 60947-1
Operating altitude9842.52 ft (3000 m) without derating 5000 m with derating factor
Depth11.06 in (281 mm)
Width7.6 in (192 mm)
Height5.1 in (130 mm)
Mechanical durability5 Mcycles

All specifications

LX1G4TEHEA additional specifications
ParameterValue
StandardsEN/IEC 60947-4-1 UL 60947-4-1A CSA C22.2 No 60947-4-1
RangeTeSys
CategoryUS10I1222328
Operating time20...35 ms opening 40...55 ms closing
Coil technologyBuilt-in bidirectional peak limiting
Quantity per set1
Device short nameLX1G
Maximum operating rate600 cyc/mn 140 °F (60 °C)
Electromagnetic compatibilityEMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

The Schneider LX1G4TEHEA is the control coil for a TeSys contactor — it pulls the main contacts in. Rated for 48-130 V AC/DC. Built-in bidirectional peak limiting eliminates the need for an external suppression module across the coil. Opening takes 20-35 ms, closing 40-55 ms — fast enough for standard motor switching.

Handling & Mounting

The coil footprint: 11.06 x 7.6 x 5.1 inches — large enough to plan for panel space. IP20 protection; operating temperature range -13 to 140 °F. Rated altitude up to 9842.52 ft without derating.

The part's lifecycle is Active — no discontinuation notice. It is sourced to order via the Schneider distribution channel; submit an RFQ for current pricing and lead time.

Frequently asked questions

What is the depth of the LX1G4TEHEA?

The listed depth is 11.06 in (281 mm).

What product range does the LX1G4TEHEA belong to?

It is part of the Schneider TeSys range.

What compliance standards does the LX1G4TEHEA meet?

It is designed to meet EN/IEC 60947-4-1, UL 60947-4-1A, and CSA C22.2 No 60947-4-1.
