Schneider Electric LX1LD110
MPNLX1LD110
Obsolete

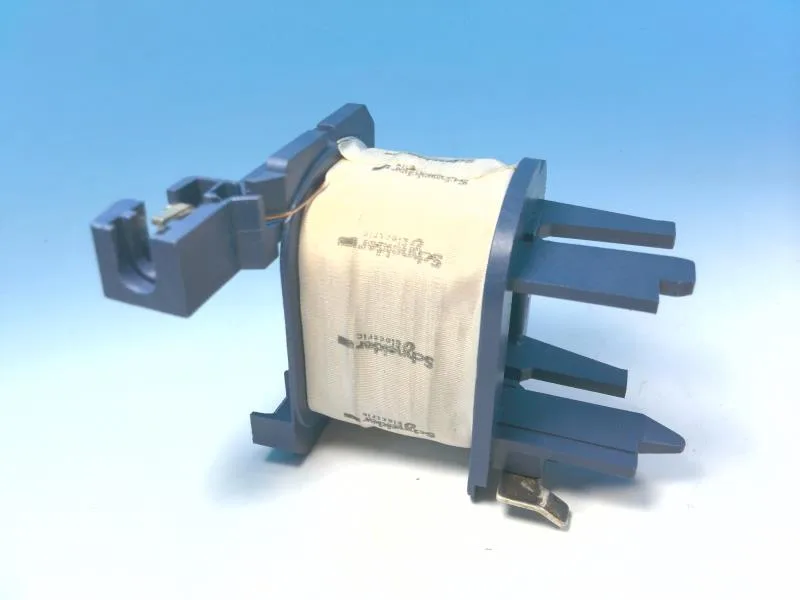

LX1LD110 - CONTACTOR COIL by TELEMECANIQUE
$192.43Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50 Hz |
| Product or component type | Coil |
| Coil voltage | 110 V AC 50 Hz |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc (at Drop-out: 0.25...0.7 Uc (at <131 °F (55 °C)) |
| Inrush power in | 350...400 VA 50 Hz cos phi 0.55 |
| Hold-in power consumption in | 20...30 VA 50 Hz cos phi 0.28 |
| Range | TeSys |
| Category | 22384-STARTERS,INTEGRAL,ACCESS |
| Device short name | LX1 |
| Average resistance | 6.48 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 1.48 H |
MPN
LX1LD110
