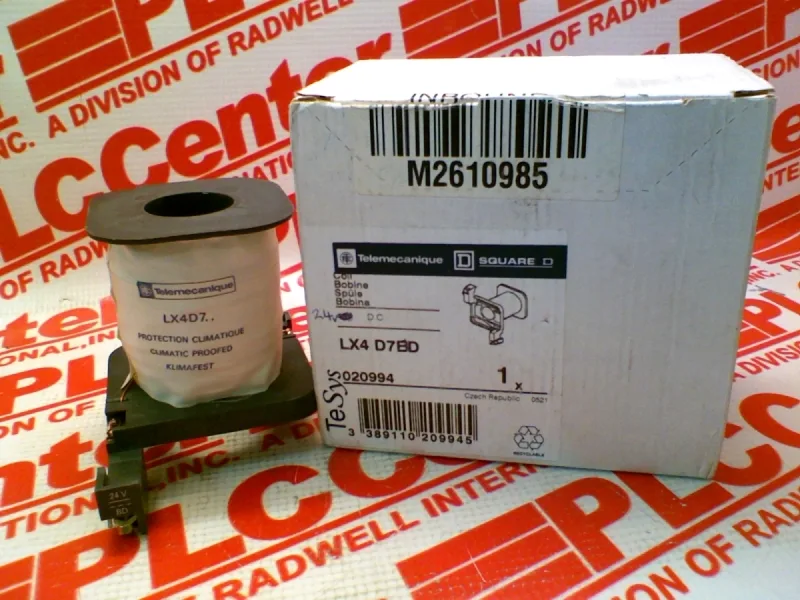

Schneider TeSys LX4D7BD DC contactor coil, 24 V DC, 22 W, for LC1D80 frame, 3/4-pole, without built-in suppressor module, discontinued.
| Parameter | Value |
|---|---|
| Product or component type | Contactor coil |
| Inrush power in | 22 W 68 °F (20 °C)) |
| Hold-in power consumption in | 22 W 68 °F (20 °C) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Time constant | 75 ms |
| Coil technology | Without built-in suppressor module |
| Device short name | LX4D7 |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 1.89 H |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |

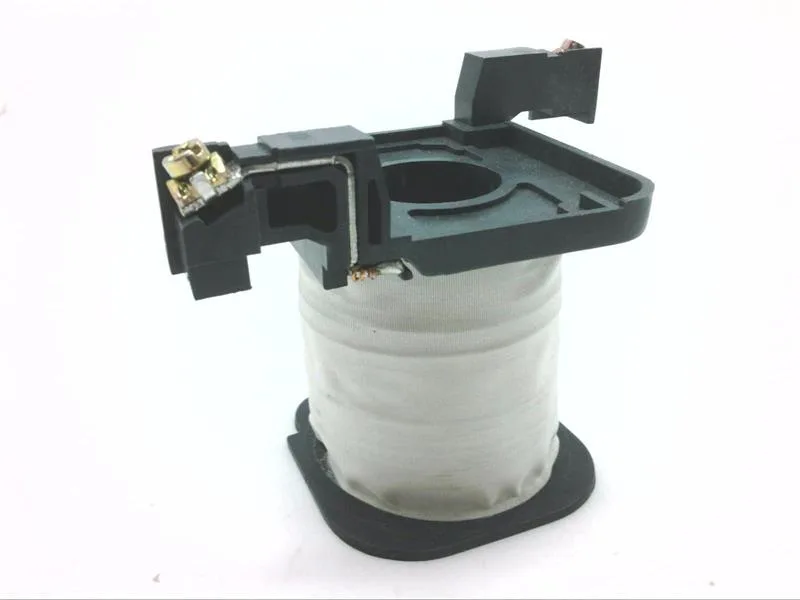

The LX4D7BD is a Schneider TeSys DC contactor coil rated 24 V DC and 22.0 W, designed for the LC1D80 contactor frame in 3- or 4-pole configurations. It carries no built-in suppressor module. Schneider has discontinued this coil.
Schneider lists the LX4D7BD as discontinued with no official successor coil. Sourcing now runs through surplus and broker channels. For a BOM-freeze or line-down need, an RFQ is the fastest path to confirm available quantity and lead time.
