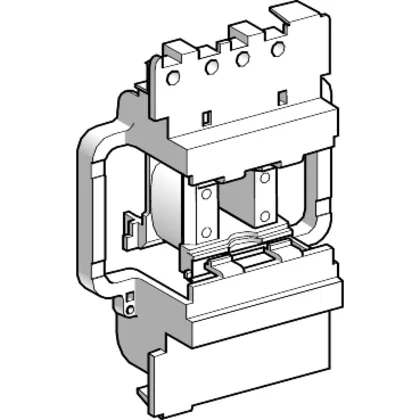

Schneider Electric LX4D8BD
MPNLX4D8BD
Obsolete
CONTACTOR COIL 24VDC IEC|CONTACTOR COIL 24VDC IEC
$73.66Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | DC standard |
| Product or component type | Contactor coil |
| Coil voltage | 24 V DC |
| Control circuit voltage limits | Operational: 0.75...1.2 Uc (at Drop-out: 0.15...0.4 Uc (at <131 °F (55 °C)) |
| Inrush power in | 270...365 W 68 °F (20 °C)) |
| Hold-in power consumption in | 2.4...5.1 W 68 °F (20 °C) |
| Mechanical durability | 8 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Time constant | 25 ms |
| Coil technology | Without built-in suppressor module |
| Device short name | LX4D8 |
| Average resistance | 147 Ohm 68 °F (20 °C) |
| Maximum operating rate | 1200 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 3.03 H |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LX4D8BD
