Schneider Electric LX4FF024

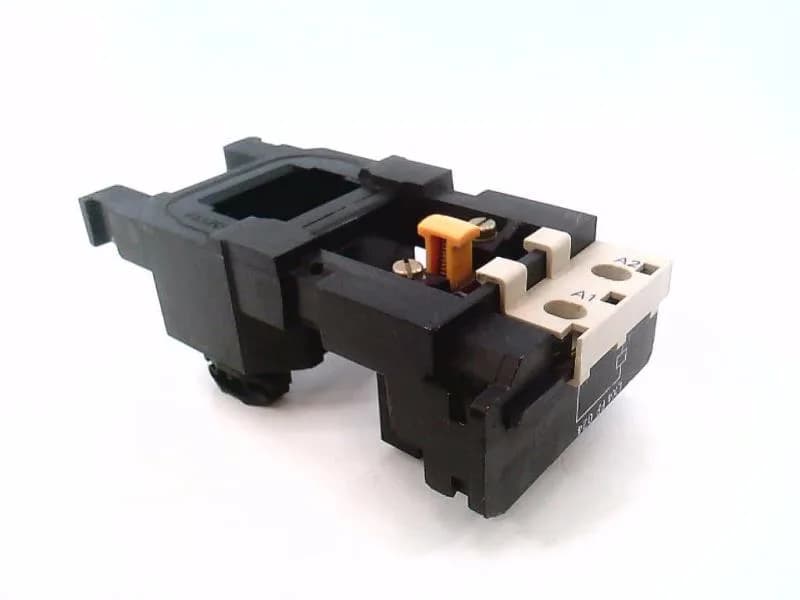

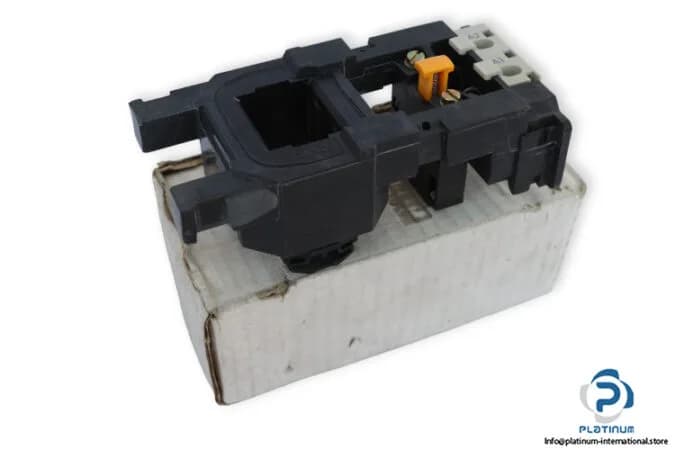

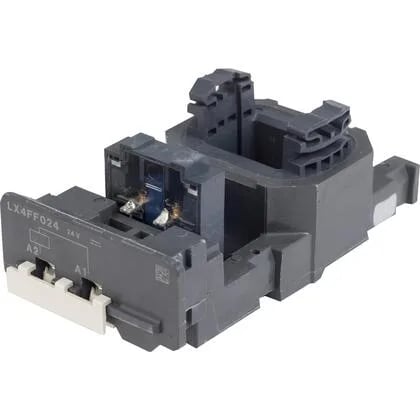

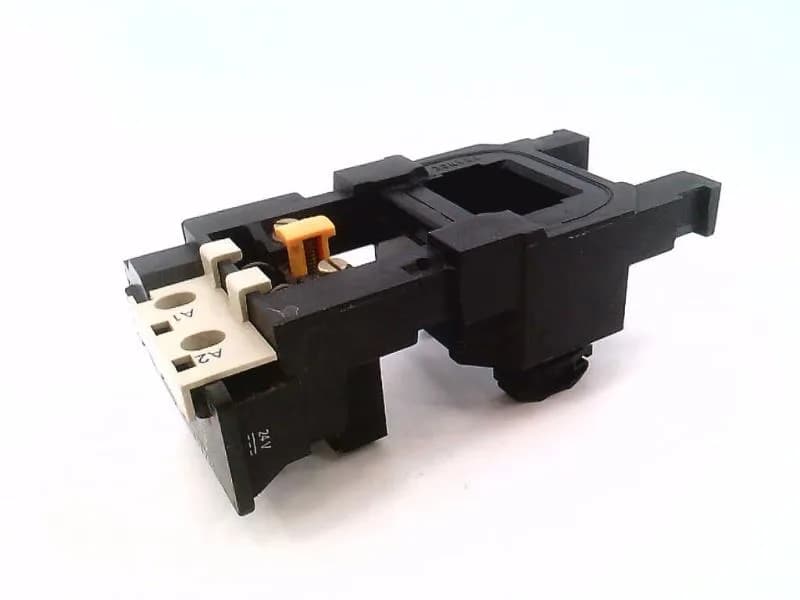

Schneider LX4FF024 TeSys F Contactor Coil, 24 V DC, 560 W

MPNLX4FF024
Obsolete

Schneider LX4FF024 Contactor & Starter Coils — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$60.00 – $114.30Ref. price · indicative, final on quote
Schneider Electric LX4FF024 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LX4FF024 specifications
ParameterValue
Control circuit typeDC low consumption
Product or component typeContactor coil
Coil voltage24 V DC
Control circuit voltage limitsOperational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.15...0.2 Uc 131 °F (55 °C))
Inrush power in560 W 68 °F (20 °C))
Hold-in power consumption in4.5 W 68 °F (20 °C)
Mechanical durability10 Mcycles
RangeTeSys
CategoryUS10I1222341
Operating time30...40 ms closing 30...50 ms opening
Coil technologyWithout built-in suppressor module
Device short nameLX4FF
Average resistance1.12 Ohm inrush 68 °F (20 °C) 177 Ohm holding 68 °F (20 °C)
Maximum operating rate2400 cyc/h 131 °F (55 °C)
Inductance of closed circuit11 H
Ambient air temperature for operation23...131 °F (-5...55 °C)

Product details

Overview

The LX4FF024 is a Schneider TeSys F contactor coil, order code LX4FF024, rated 24 V DC, 560 W, with a power consumption of 4.5 W. It is designed for use with TeSys F LC1F115 and LC1F150 contactors. The coil operates without a built-in suppressor module, has a 30 ms operating time, and is rated for 10 Mcycles mechanical life at an ambient temperature of 23 °C.

Within the TeSys F coil range, the LX4FF024 (560 W, 4.5 W consumption) is the lower-power option compared to the LX4FH024 (750 W, 5.0 W consumption). Choose the LX4FH024 when the contactor frame (LC1F265/LC1F330) requires higher inrush power.

Lifecycle

The LX4FF024 is discontinued as of June 15, 2023. For new designs or replacements, evaluate the LX4FH024 (LX4FH024) for higher-power contactor frames, or the LX4FF110 (LX4FF110) for 110 V DC applications.

MPN
LX4FF024
