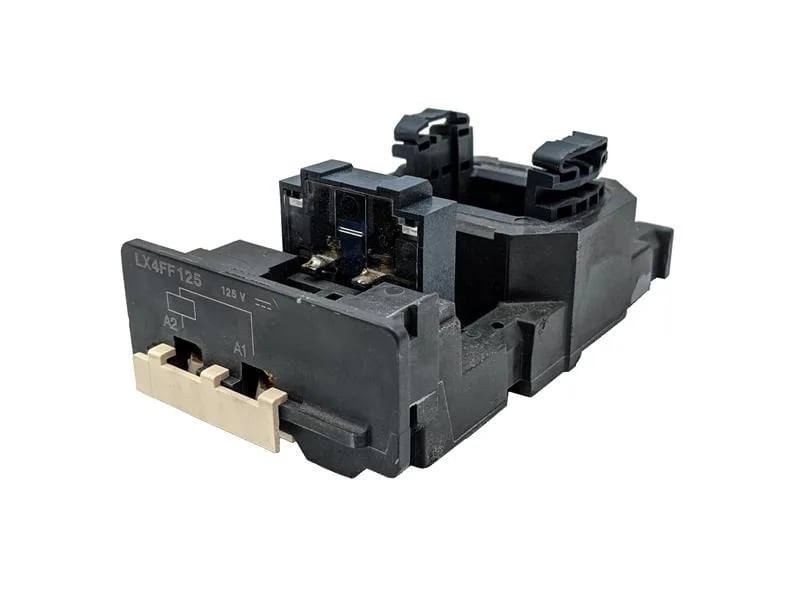

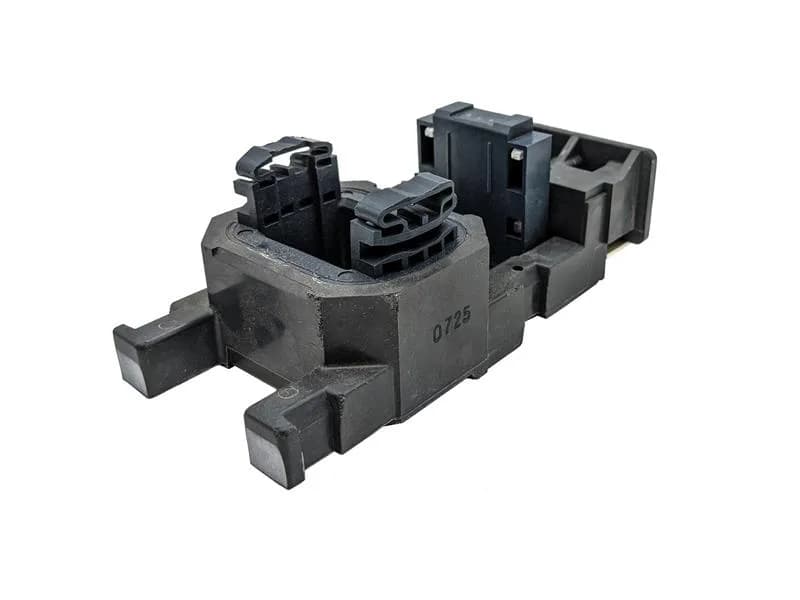

Schneider Electric LX4FF125
MPNLX4FF125
Obsolete
SQD LX4FF125 CONTACTOR COIL 1|SQD LX4FF125 CONTACTOR COIL 1
$91.44Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | DC low consumption |
| Product or component type | Contactor coil |
| Coil voltage | 125 V DC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.15...0.2 Uc 131 °F (55 °C)) |
| Inrush power in | 560 W 68 °F (20 °C)) |
| Hold-in power consumption in | 4.5 W 68 °F (20 °C) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 30...40 ms closing 30...50 ms opening |
| Coil technology | Without built-in suppressor module |
| Device short name | LX4FF |
| Average resistance | 26.8 Ohm inrush 68 °F (20 °C) 3560 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 223 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX4FF125
