Schneider Electric LX4FF155
MPNLX4FF155
Obsolete

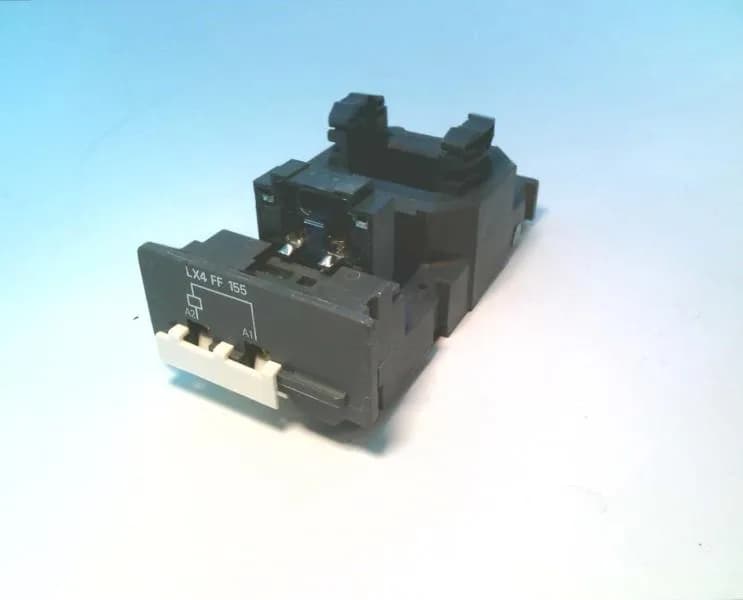

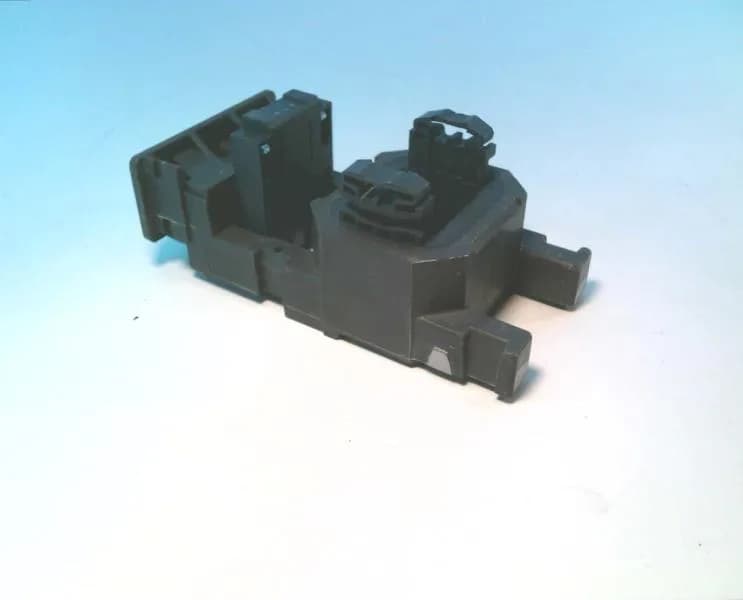

LX4FF155 - CONTACTOR COIL by SCHNEIDER ELECTRIC
$264.67Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | DC low consumption |
| Product or component type | Contactor coil |
| Coil voltage | 155 V DC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.15...0.2 Uc 131 °F (55 °C)) |
| Range | TeSys |
| Category | 18401-WORLD SERVICE PARTS(CTR ACCESS) |
| Operating time | 30...40 ms closing 30...50 ms opening |
| Coil technology | Without built-in suppressor module |
| Device short name | LX4FF |
| Average resistance | 43.1 Ohm inrush 68 °F (20 °C) 7054 Ohm holding 68 °F (20 °C) |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX4FF155
