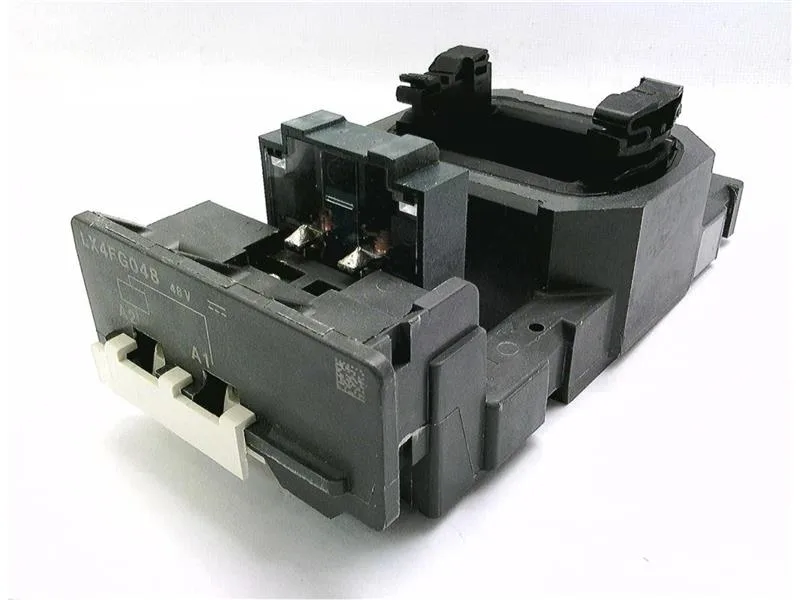

Schneider TeSys F LX4FG048 contactor coil, 48 V DC, 5 W, 800 VA, without built-in suppressor module, for LC1F185/LC1F225 contactors, discontinued.
| Parameter | Value |
|---|---|
| Control circuit type | DC low consumption |
| Product or component type | Contactor coil |
| Coil voltage | 48 V DC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.15...0.2 Uc 131 °F (55 °C)) |
| Inrush power in | 800 W 68 °F (20 °C)) |
| Hold-in power consumption in | 5 W 68 °F (20 °C) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Operating time | 30...40 ms closing 30...50 ms opening |
| Coil technology | Without built-in suppressor module |
| Device short name | LX4FG |
| Average resistance | 3.2 Ohm inrush 68 °F (20 °C) 662 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 55.3 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
The LX4FG048 is a Schneider TeSys F DC low-consumption contactor coil rated 48 V DC and 5 W, designed for the LC1F185 and LC1F225 contactor frames. Schneider has discontinued this part, so it is now sourced from surplus and broker channels rather than current distribution.
