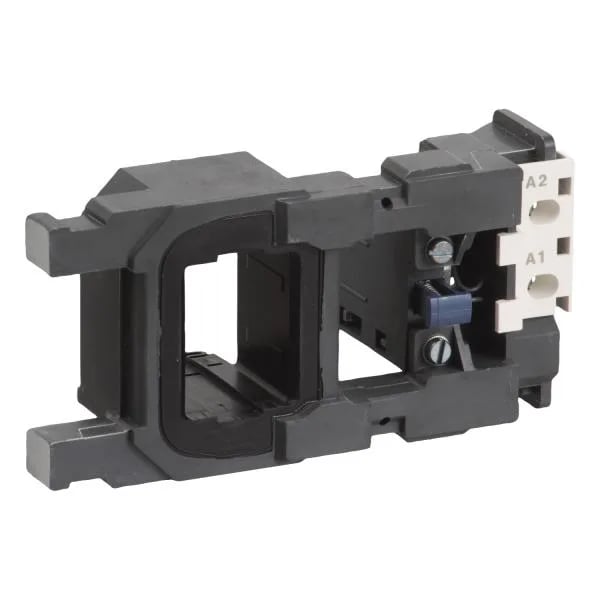

Schneider Electric LX4FG250
MPNLX4FG250
Obsolete
LX4FG250 - 12.30.2020 by SQUARE D
$821.93Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | DC low consumption |
| Product or component type | Contactor coil |
| Coil voltage | 250 V DC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.15...0.2 Uc 131 °F (55 °C)) |
| Inrush power in | 800 W 68 °F (20 °C)) |
| Hold-in power consumption in | 5 W 68 °F (20 °C) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | 18401-WORLD SERVICE PARTS(CTR ACCESS) |
| Operating time | 30...40 ms closing 30...50 ms opening |
| Coil technology | Without built-in suppressor module |
| Device short name | LX4FG |
| Average resistance | 76 Ohm inrush 68 °F (20 °C) 12400 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 1140 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX4FG250
