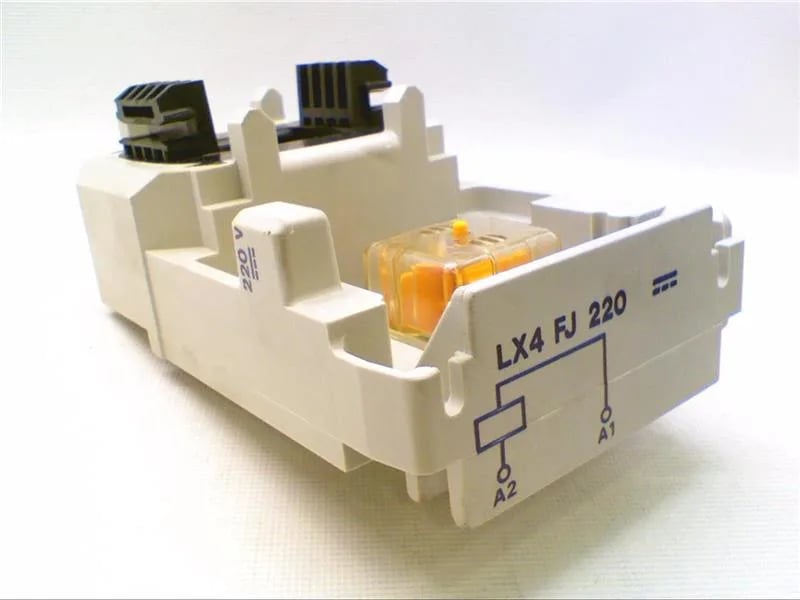

Schneider Electric LX4FJ220
MPNLX4FJ220
Obsolete
LX4FJ220 - TESYS F by SCHNEIDER ELECTRIC
$229.87Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | DC low consumption |
| Product or component type | Contactor coil |
| Coil voltage | 220 V DC |
| Control circuit voltage limits | Drop-out 0.2...0.35 Uc 131 °F (55 °C)) Operational 0.85...1.1 Uc 131 °F (55 °C)) |
| Inrush power in | 1000 W 68 °F (20 °C)) |
| Hold-in power consumption in | 6 W 68 °F (20 °C) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US1CP1018401 |
| Operating time | 45...60 ms opening 50...60 ms closing |
| Coil technology | Without built-in suppressor module |
| Device short name | LX4FJ |
| Average resistance | 47 Ohm inrush 68 °F (20 °C) 8820 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 910 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX4FJ220
