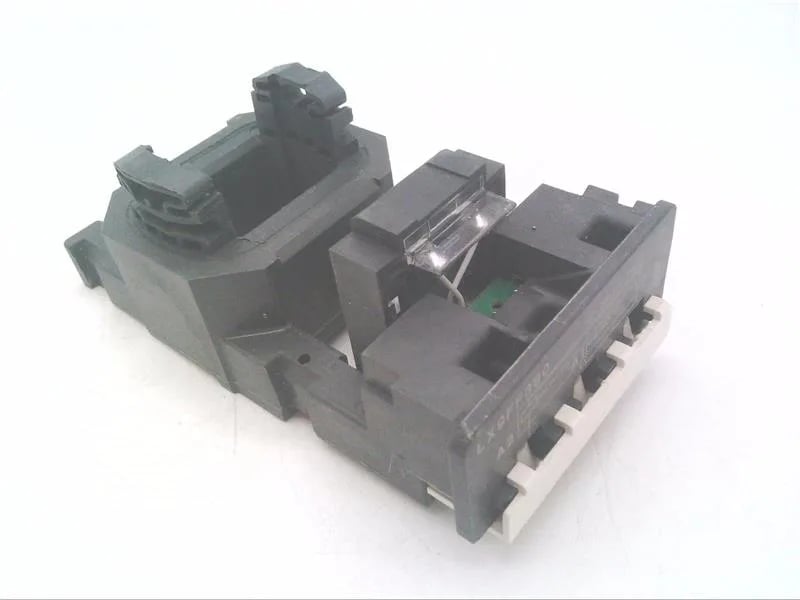

Schneider Electric LX9FF024
MPNLX9FF024
Obsolete
LX9FF024 by SCHNEIDER ELECTRIC
$118.11Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC low consumption |
| Product or component type | Contactor coil |
| Coil voltage | 24 V AC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.2...0.55 Uc 131 °F (55 °C)) |
| Inrush power in | 690...855 W 68 °F (20 °C)) |
| Hold-in power consumption in | 6.6...8.1 W 68 °F (20 °C) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 35 ms closing 130 ms opening |
| Coil technology | Without built-in suppressor module |
| Device short name | LX9FF |
| Average resistance | 0.97 Ohm inrush 68 °F (20 °C) 26.3 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 0.15 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX9FF024
