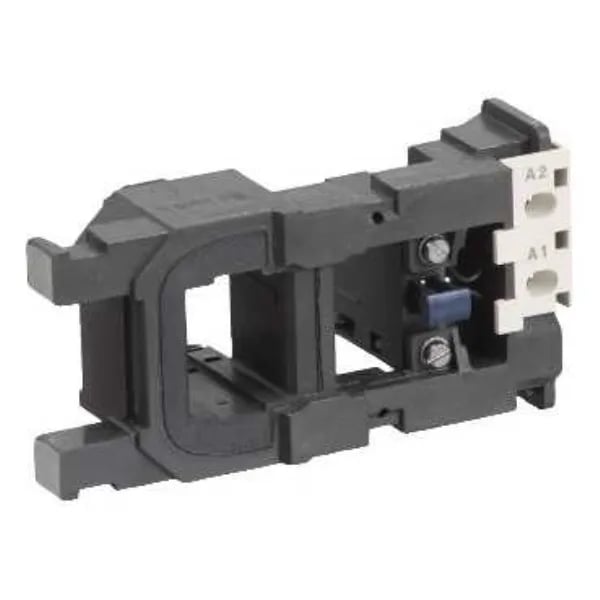

Schneider Electric LX9FF220
MPNLX9FF220
Obsolete
SQD LX9FF220 CONTACTOR COIL 235VAC|SQD LX9FF220 CONTACTOR COIL 235VAC IEC
$154.94Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz low consumption |
| Product or component type | Specific contactor coil |
| Coil voltage | 220...230 V AC 40...400 Hz |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.2...0.55 Uc 131 °F (55 °C)) |
| Inrush power in | 690...855 VA 40...400 Hz (at 68 °F (20 °C)) |
| Hold-in power consumption in | 6.6...8.1 VA 40...400 Hz (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 130 ms opening 35 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 5.9...7.2 W |
| Device short name | LX9FF |
| Average resistance | 59.4 Ohm inrush 68 °F (20 °C) 2190 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 7.7 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX9FF220
