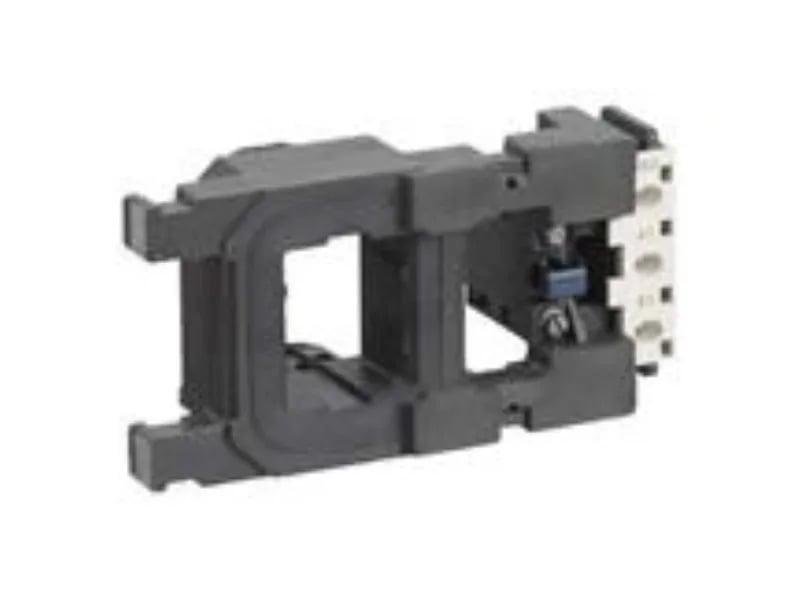

Schneider Electric LX9FH1102
MPNLX9FH1102
Obsolete
LX9FH1102 - FOR SPECIFIC APPLICATION by TELEMECANIQUE
$180.34Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz low consumption |
| Product or component type | Specific contactor coil |
| Coil voltage | 110...115 V AC 40...400 Hz |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.35...0.55 Uc 131 °F (55 °C)) |
| Inrush power in | 560...660 VA 40...400 Hz (at 68 °F (20 °C)) |
| Hold-in power consumption in | 8...10 VA 40...400 Hz (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 25 ms opening 45 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 8.4...10.4 W |
| Device short name | LX9FH |
| Average resistance | 18.7 Ohm inrush 68 °F (20 °C) 415 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 3600 cyc/h 131 °F (55 °C) |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX9FH1102
