Schneider Electric LX9FJ925
MPNLX9FJ925
Obsolete

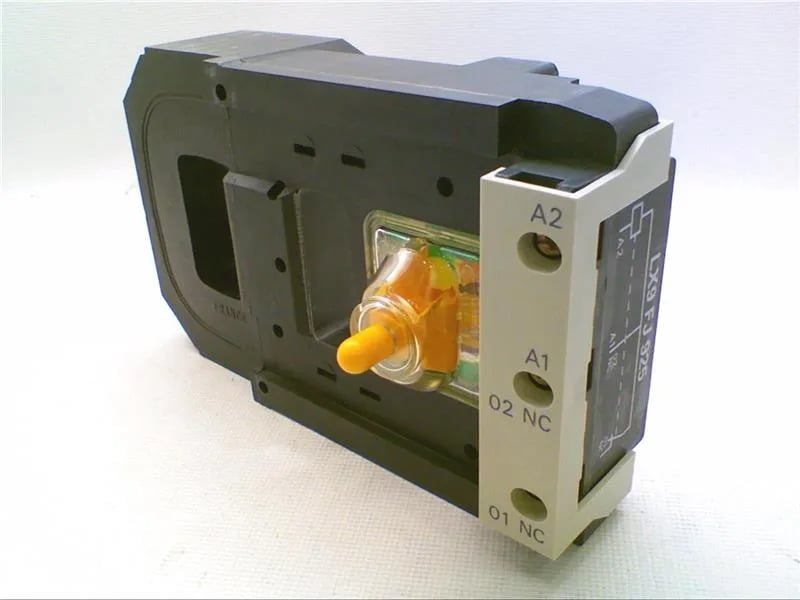

LX9FJ925 - CONTACTOR by SCHNEIDER ELECTRIC
$295.91Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz low consumption DC low consumption |
| Product or component type | Specific contactor coil |
| Coil voltage | 110 V AC 40...400 Hz 110 V DC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 131 °F (55 °C)) |
| Inrush power in | 500 VA 40...400 Hz (at 68 °F (20 °C)) |
| Hold-in power consumption in | 23 VA 40...400 Hz (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 60 ms opening 50 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 11.4...13.9 W |
| Device short name | LX9FJ |
| Average resistance | 25.7 Ohm inrush 68 °F (20 °C) 246 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 3600 cyc/h 158 °F (70 °C) |
| Inductance of closed circuit | 1.3 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
