Schneider Electric TeSys LX9FK910 is a specific contactor coil for TeSys contactors, rated for 24 V AC/DC control voltage without a built-in suppressor module. Operating time is 60 ms opening and 20 ms closing, with an inrush power of 470 W at 20 °C and hold-in power consumption of 29 W.

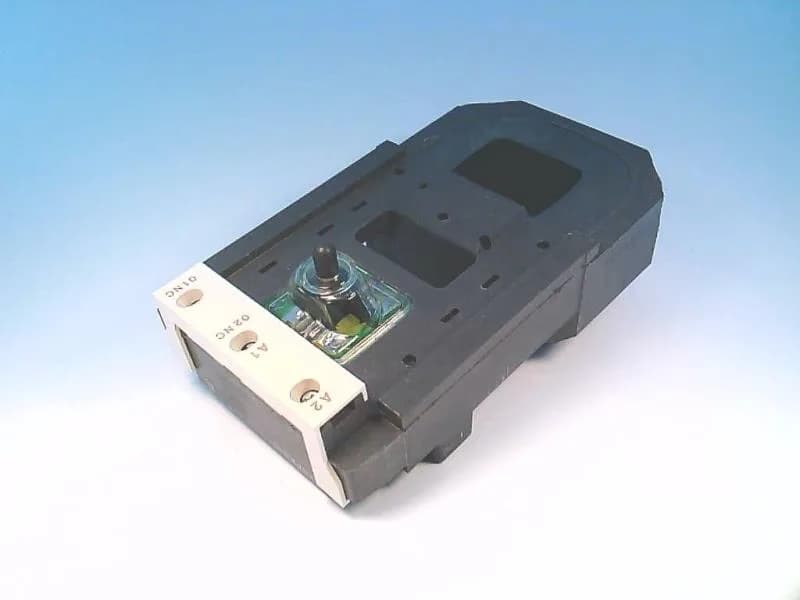

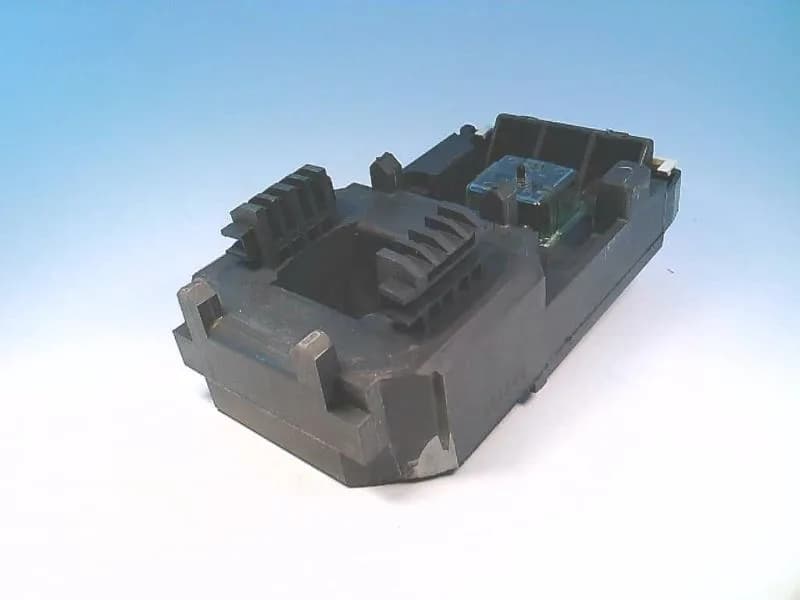

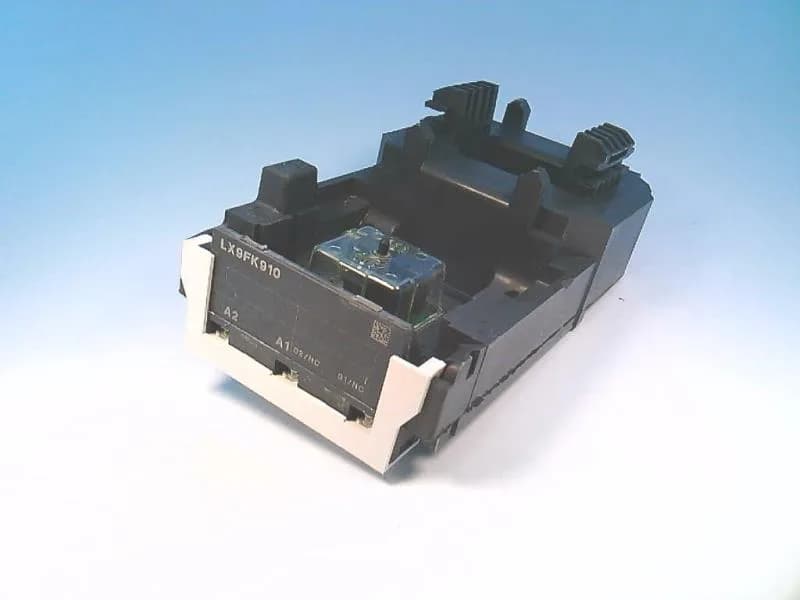

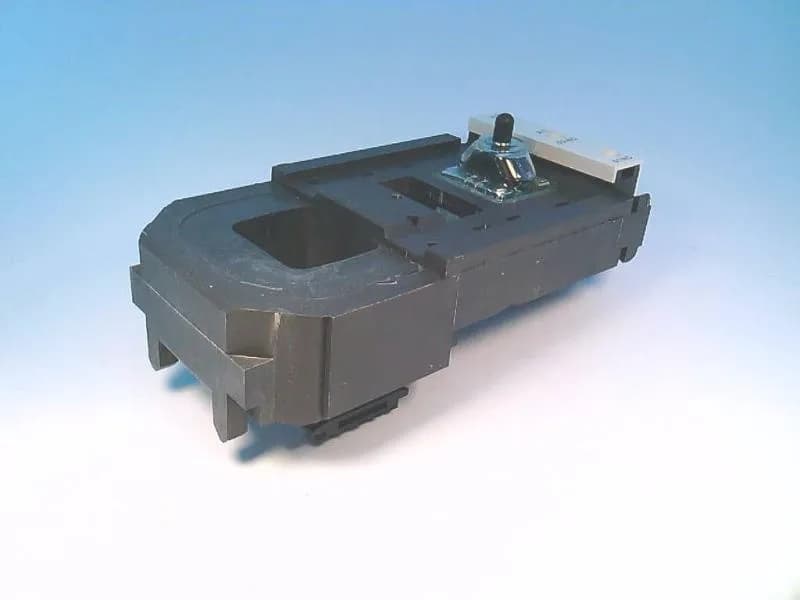

Schneider Electric LX9FK910 TeSys Contactor Coil, 24V AC/DC
MPNLX9FK910
Active
Schneider Electric TeSys LX9FK910, specific contactor coil, 24 V AC/DC, without built-in suppressor module, active production.
$320.04 – $441.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz low consumption DC low consumption |
| Product or component type | Specific contactor coil |
| Coil voltage | 24 V DC 24 V AC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 131 °F (55 °C)) |
| Inrush power in | 470 W 68 °F (20 °C)) |
| Hold-in power consumption in | 29 W 68 °F (20 °C) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 60 ms opening 20 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 15...18.3 W |
| Device short name | LX9FK |
| Maximum operating rate | 3600 cyc/h 158 °F (70 °C) |
| Inductance of closed circuit | 0.22 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
Product details
Frequently asked questions
What is the listed range for LX9FK910?
The range is TeSys.
What is the category code for LX9FK910?
The category is US10I1222341.
