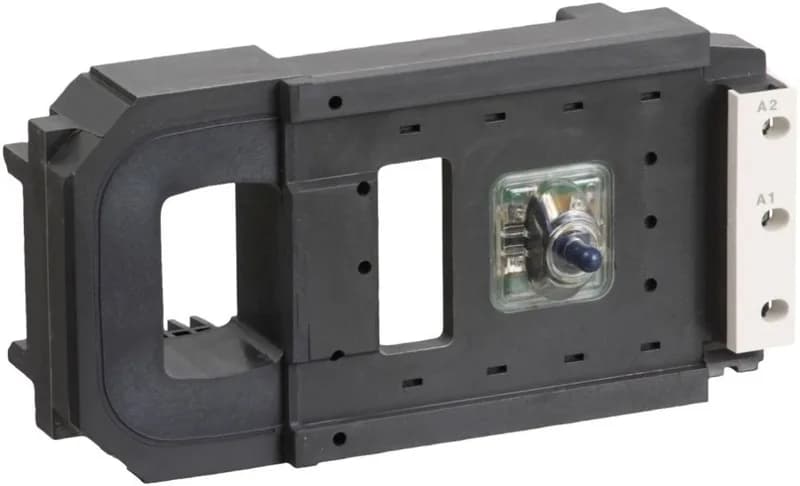

The LX9FL931 is a TeSys family specific contactor coil, designed to fit Square D/Telemecanique contactors. It operates on a 220–240 V DC control circuit with AC/DC low-consumption technology, drawing 48 W holding power. Rated opening time is 60 ms, closing 20 ms, and mechanical durability reaches 5 million cycles. This part is now obsolete per the manufacturer's lifecycle status. No replacement has been issued, so sourcing must go through surplus or broker channels.
LX9FL931 TeSys Coil, 220–240 V DC, Obsolete
MPNLX9FL931
Obsolete
TeSys LX9FL931 specific contactor coil, 220–240 V DC, low-consumption AC/DC, 60 ms opening. Obsolete.
$358.14 – $610.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz low consumption DC low consumption |
| Product or component type | Specific contactor coil |
| Coil voltage | 220...240 V DC |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 131 °F (55 °C)) |
| Inrush power in | 733 W 68 °F (20 °C)) |
| Hold-in power consumption in | 48 W 68 °F (20 °C) |
| Mechanical durability | 5 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 60 ms opening 20 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 22.8...27.8 W |
| Device short name | LX9FL |
| Average resistance | 64.5 Ohm inrush 68 °F (20 °C) 518 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 1800 cyc/h 158 °F (70 °C) |
| Inductance of closed circuit | 3.6 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
Product details
Frequently asked questions
What replaces the LX9FL931?
There is no official replacement announced. For a BOM line, you will need to source through surplus or broker channels.
What are the key ratings of the LX9FL931?
Coil voltage 220–240 V DC, opening time 60 ms, closing 20 ms, mechanical durability 5 million cycles, holding power 48 W, inrush 733 W.
