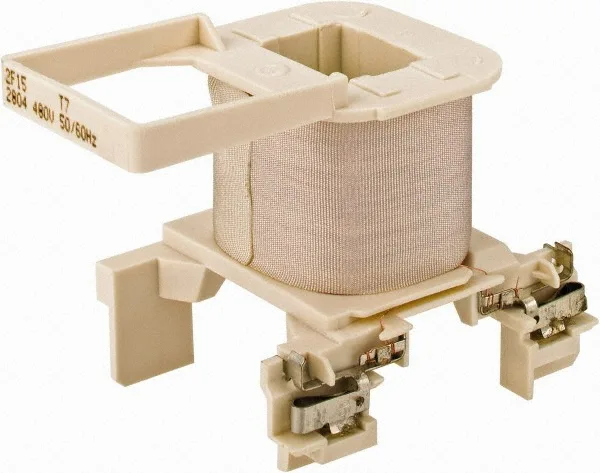

Schneider Electric LXD3T7
MPNLXD3T7
Obsolete
D40A TO D65A REPLACE|SQD LXD3T7 D40A TO D65A REPLACE
$26.67 – $68.75Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 480 V AC 60 Hz |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 60 Hz (at Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C)) |
| Inrush power in | 160 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 15 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 6 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 4...5 W 60 Hz |
| Device short name | LXD3 |
| Average resistance | 607 Ohm 68 °F (20 °C) |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 33.1 H |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LXD3T7
