Overview
The LXM05BD10M2 is a Schneider Lexium 05 motion servo drive rated 750 W, 4 A output, 240 V single-phase at 60 Hz. It is part of the Lexium 05 family and has been discontinued by Schneider.

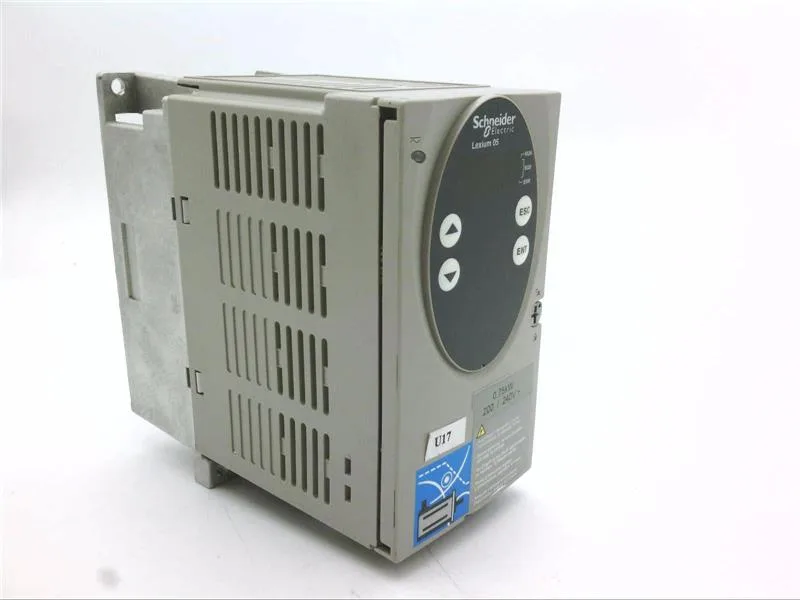

Schneider LXM05BD10M2 Lexium 05 servo drive, 750 W, 240 V, discontinued
MPNLXM05BD10M2
Obsolete
Schneider LXM05BD10M2 Servo Drives & Controls — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
$555.55Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium 05 |
| Type of polarization | No polarization impedances for Modbus |
| Product or component type | Motion servo drive |
| Output voltage | 1000...2000 m with conditions |
| Power supply voltage | 200...240 V - 15...10 % |
| Power supply voltage limits | 170...264 V |
| Line current | 6.7 A at 240 V 8.1 A at 200 V |
| Inrush current | 60 A |
| Maximum leakage current | 30 mA |
| Continuous output current | 4 A at 4 kHz 3.2 A at 8 kHz |
| Transient RMS output current | 6 A at 8 kHz for 3 s 7 A at 4 kHz for 3 s |
| Nominal power | 0.75 kW at 4 kHz |
All specifications
| Parameter | Value |
|---|---|
| Power supply frequency limits | 47.5...63 Hz |
| Supply frequency | 50/60 Hz - 5...5 % |
| Switching frequency | 8 kHz 4 kHz |
| Network number of phases | Single phase |
| Component name | LXM05B |
| Overvoltage category | III |
| Discrete input number | 2 safety discrete input(s) 4 logic discrete input(s) |
| Maximum prospective line isc | 1 kA |
Product details
MPN
LXM05BD10M2
