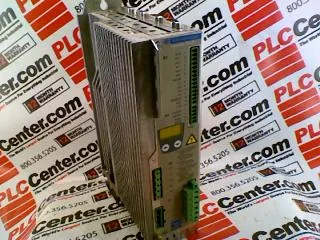

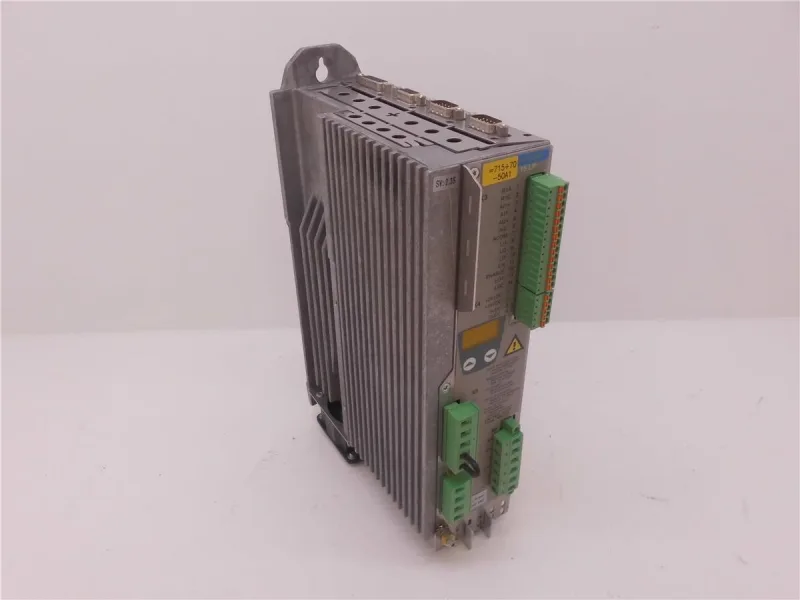

Schneider LXM15LD21M3 Servo Drive
MPNLXM15LD21M3
Obsolete
LXM15LD21M3 by TELEMECANIQUE
$4,134.62Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| EMC filter | Integrated |
| Line current | 10.1 A at 200 V single phase 8.6 A at 240 V three phase 8.8 A at 200 V three phase 9.9 A at 240 V single phase |
| Nominal power | 1.2 kW single phase 2.1 kW three phase |
| Apparent power | 2.4 kVA |
| Component name | LXM15L |
| Output voltage | 1000...2000 m with derating of the motor output current by 1.5 % per additional 100 m |
| Earthing system | Compatible TN Compatible IT with additional isolation transformer on the power supply Compatible TT |
| Range of product | Lexium 15 |
| Peak output current | 13 A single phase 21 A three phase |
| Switching frequency | 8 kHz |
| Power supply voltage | 200...240 V - 15...10 % |
| Power supply frequency | 50/60 Hz - 5...5 % |
| Network number of phases | Single phase Three phase |
| Continuous output current | 4 A single phase 6 A three phase |
| Product or component type | Motion servo drive |
| Power supply voltage limits | 170...264 V |
| Transient RMS output current | 15 A for 2 s three phase 9 A for 2 s single phase |
| Power supply frequency limits | 47.5...63 Hz |
MPN
LXM15LD21M3
