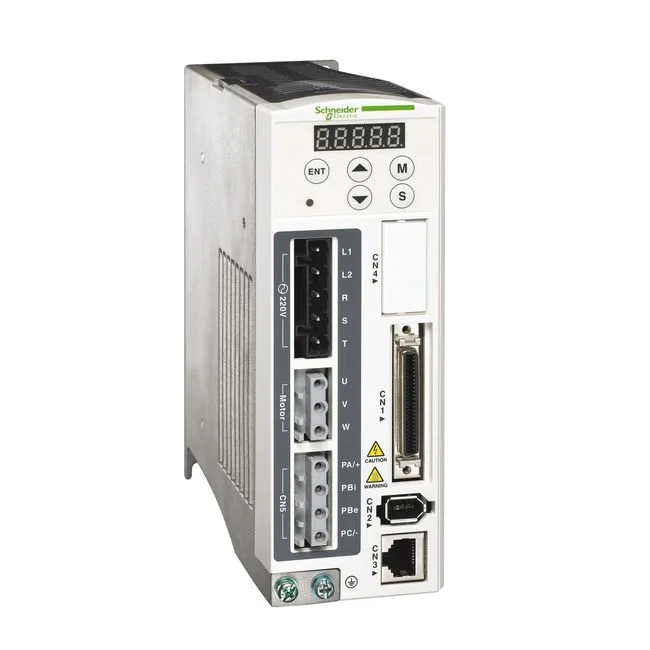

Schneider Electric LXM23DU01M3X
MPNLXM23DU01M3X
Obsolete
Motion Servo Drive
$262.00 – $528.43Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Nominal power | 0.1 kW at 220 V |
| Output voltage | 1000...2000 m with continuous power derating of 1 % per 100 m |
| Continuous power | 100 W at 220 V |
| Range of product | Lexium 23 Plus |
| Supply frequency | 50/60 Hz - 5...5 % |
| Device short name | LXM23 |
| Format of the drive | Book |
| Supply voltage limits | 200...255 V single phase 170...255 V 3 phases |
| Maximum leakage current | 3.5 mA |
| Network frequency limits | 47.5...63 Hz |
| Network number of phases | 3 phases Single phase |
| Continuous output current | 0.9 A |
| Product or component type | Motion servo drive |
| Supply voltage | 220 V single phase (tolerance: - 10...15 %) 220 V 3 phases (tolerance: - 20...15 %) |
MPN
LXM23DU01M3X
