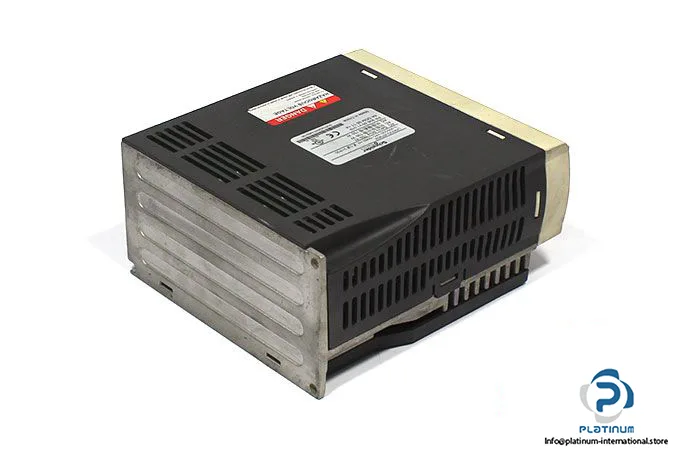

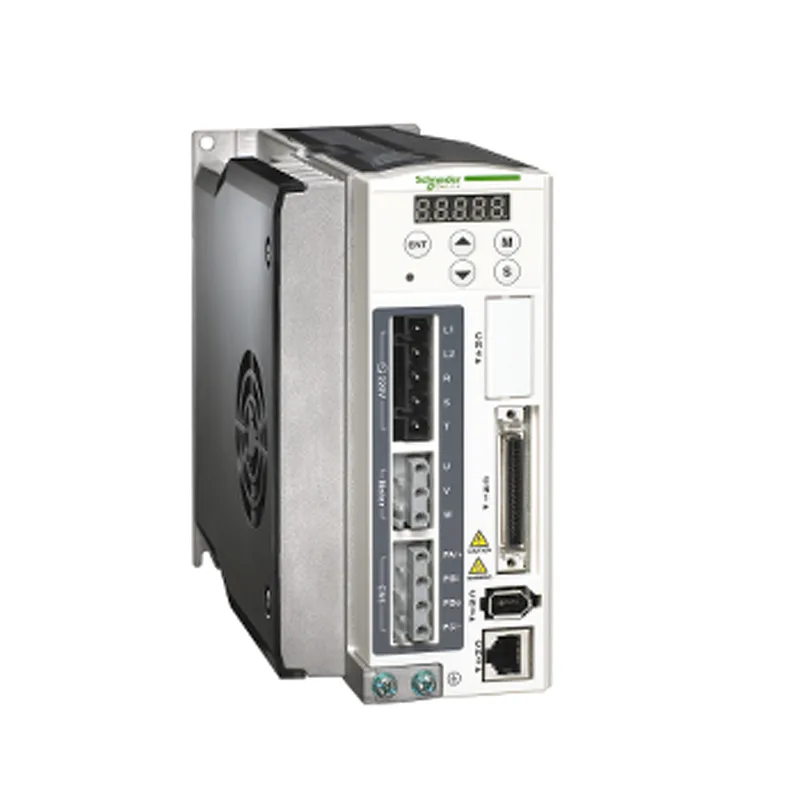

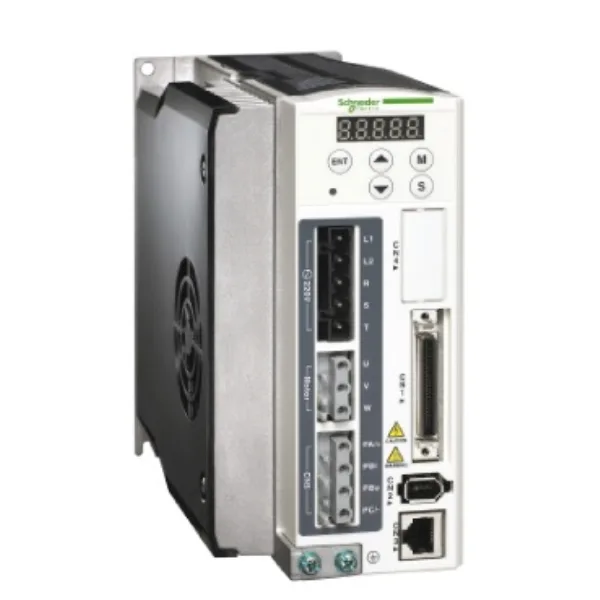

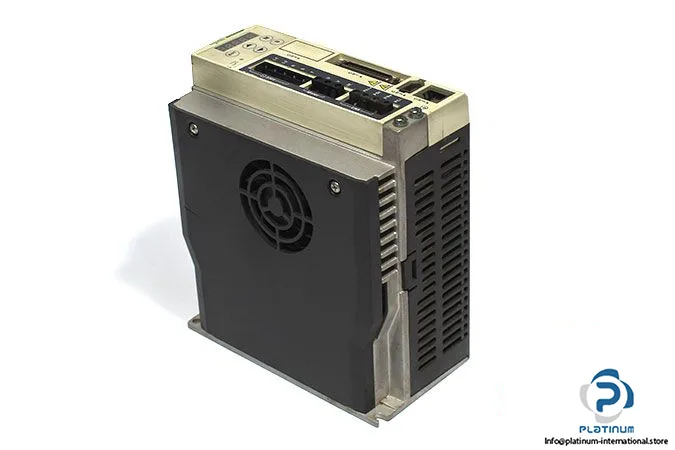

Schneider, Lexium 23 Plus, Motion Servo Drive, LXM23DU07M3X, 0.75 kW at 220 V, 5.1 A, Book format.
| Parameter | Value |
|---|---|
| Nominal power | 0.75 kW at 220 V |
| Output voltage | 1000...2000 m with continuous power derating of 1 % per 100 m |
| Continuous power | 750 W at 220 V |
| Range of product | Lexium 23 Plus |
| Supply frequency | 50/60 Hz - 5...5 % |
| Device short name | LXM23 |
| Format of the drive | Book |
| Supply voltage limits | 200...255 V single phase 170...255 V 3 phases |
| Maximum leakage current | 3.5 mA |
| Network frequency limits | 47.5...63 Hz |
| Network number of phases | 3 phases Single phase |
| Continuous output current | 5.1 A |
| Product or component type | Motion servo drive |
| Supply voltage | 220 V single phase (tolerance: - 10...15 %) 220 V 3 phases (tolerance: - 20...15 %) |
The Schneider LXM23DU07M3X is a Lexium 23 Plus motion servo drive delivering 0.75 kW continuous at 220 V, with a 5.1 A continuous output current. It accepts single-phase or three-phase supply over 200–255 V, with altitude derating of 1 % per 100 m above 1000 m up to 2000 m. The drive is a book format, suited for compact panel mounting.
This part is classified as obsolete by Schneider.
0.75 kW at 220 V
Continuous power derates by 1% per 100 m from 1000 m to 2000 m
Through an RFQ; we can check independent supply channels
Alternative models and sibling configurations in the same Schneider Electric series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
