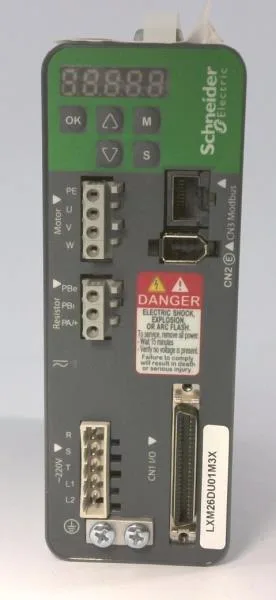

Schneider LXM26DU01M3X Servo Drive
MPNLXM26DU01M3X
Obsolete
LXM26DU01M3X - MOTION SERVO DRIVE by SCHNEIDER ELECTRIC
$761.26Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Line current | 1.2 A 239.2 % at 220 V, single phase 1.2 A 212.7 % at 220 V, three phase |
| Nominal power | 0.1 kW at 220 V 16 kHz |
| Output voltage | 1000...2000 m 1 % per 100 m |
| Continuous power | 100 W at 220 V |
| Range of product | Easy Lexium 26 |
| Supply frequency | 50/60 Hz - 5...5 % |
| Device short name | LXM26D |
| Network frequency | 47.5...63 Hz |
| Format of the drive | Compact housing |
| Switching frequency | 16 kHz |
| Overvoltage category | III |
| Supply voltage limits | 200...255 V three phase 170...255 V single phase |
| Output current 3s peak | 2.7 A at 220 V |
| Maximum leakage current | 1.3 mA |
| Network number of phases | Single phase Three phase |
| Continuous output current | 0.9 A at 16 kHz |
| Product or component type | Motion servo drive |
| Supply voltage | 220 V (- 10...15 %) for three phase 220 V (- 20...15 %) for single phase |
MPN
LXM26DU01M3X
