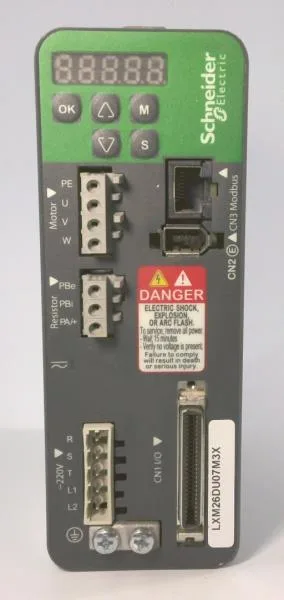

Schneider LXM26DU07M3X Servo Drive
MPNLXM26DU07M3X
Active
LXM26DU07M3X - MOTION SERVO DRIVE by SCHNEIDER ELECTRIC
$1,353.77Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Easy Lexium 26 |
| Product or component type | Motion servo drive |
| Output voltage | 1000...2000 m 1 % per 100 m |
| Supply voltage limits | 200...255 V three phase 170...255 V single phase |
| Supply voltage | 220 V (- 10...15 %) for three phase 220 V (- 20...15 %) for single phase |
| Line current | 6 A 181.8 % at 220 V, single phase 6 A 160.6 % at 220 V, three phase |
| Output current 3s peak | 13.5 A at 220 V |
| Maximum leakage current | 1.3 mA |
| Continuous output current | 4.5 A at 16 kHz |
| Nominal power | 0.75 kW at 220 V 16 kHz |
| Continuous power | 750 W at 220 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Switching frequency | 16 kHz |
| Network number of phases | Three phase Single phase |
| Device short name | LXM26D |
| Format of the drive | Compact housing |
| Overvoltage category | III |
MPN
LXM26DU07M3X
