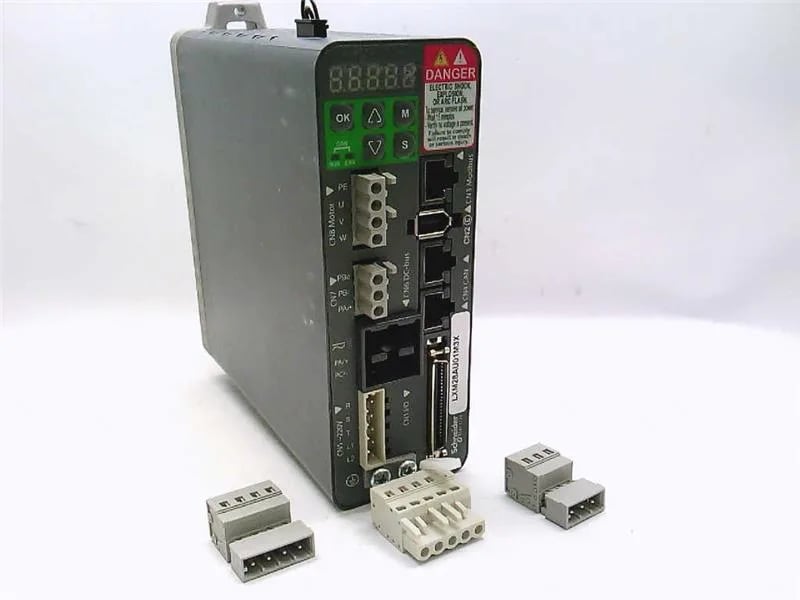

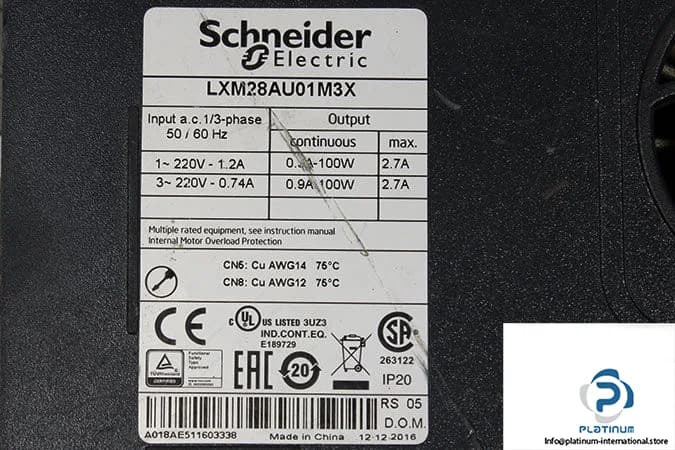

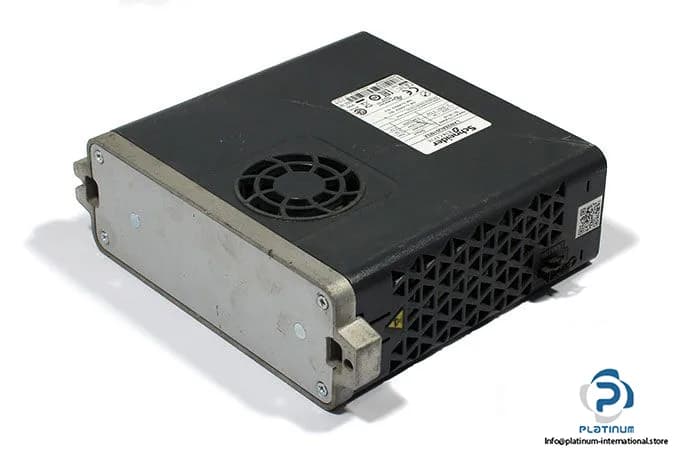

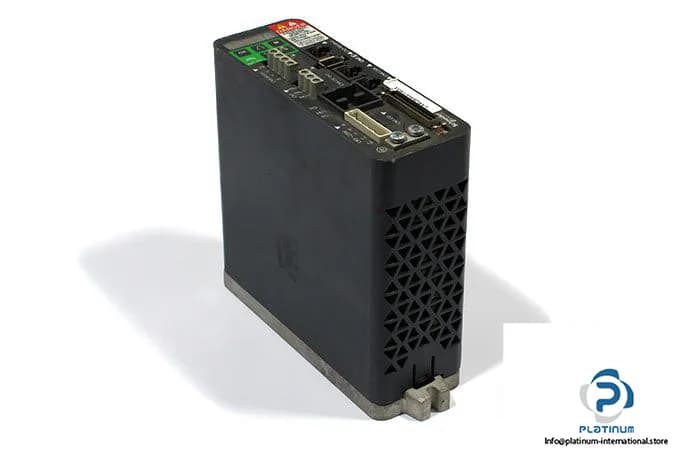

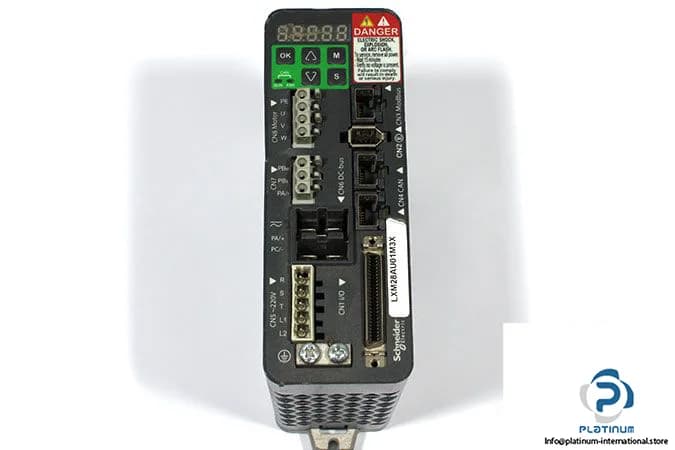

Schneider LXM28AU01M3X Lexium 28 Motion Servo Drive, 0.1 kW

Name: LXM28AU01M3X
Brand: Schneider Electric
SKU: LXM28AU01M3X
Availability: LimitedAvailability
Author: Shenzhen Shu

MPNLXM28AU01M3X

Active

Schneider, Lexium 28, Motion Servo Drive, LXM28AU01M3X, 0.1 kW 220 V, 16 kHz switching, three / single phase.

$342.90 – $745.00Ref. price · indicative, final on quote

Request quote

Schneider Electric LXM28AU01M3X datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LXM28AU01M3X key specifications
Parameter	Value
Range of product	Lexium 28
Product or component type	Motion servo drive
Output voltage	3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Supply voltage limits	200...255 V three phase 170...255 V single phase
Supply voltage	200...240 V - 10...15 %)three phase 200...240 V - 20...15 %)single phase
Line current	1.2 A 239.2 % 220 V, single phase 1.2 A 212.7 % 220 V, three phase
Output current 3s peak	2.7 A 220 V
Maximum leakage current	1.3 mA
Continuous output current	0.9 A 16 kHz
Nominal power	0.1 kW 220 V 16 kHz
Continuous power	100 W 220 V
Supply frequency	50/60 Hz - 5...5 %

All specifications

LXM28AU01M3X additional specifications
Parameter	Value
Network frequency	47.5...63 Hz
Switching frequency	16 kHz
Phases	Three phase Single phase
EMC filter	Without EMC filter
Category	US1PC5118262
Device short name	LXM28A
Format of the drive	Compact housing
Overvoltage category	III

Product details

What it is — Lexium 28 servo drive for small-axis motion

Schneider LXM28AU01M3X is a Lexium 28 motion servo drive rated 0.1 kW at 220 V, switching at 16 kHz. It accepts both three-phase (200...255 V) and single-phase (170...255 V) supply, with continuous output current 0.9 A at 16 kHz and peak 2.7 A at 220 V.

Line current draws 1.2 A on single phase at 220 V, or on three phase at 220 V with a higher percentage headroom. Overvoltage category III means it's built for fixed installation with surge immunity. The compact housing format saves panel space — check the physical dimensions for your cabinet depth. The EMC filter version is omitted on this variant, so plan external filtering if your installation requires conducted emission limits.
