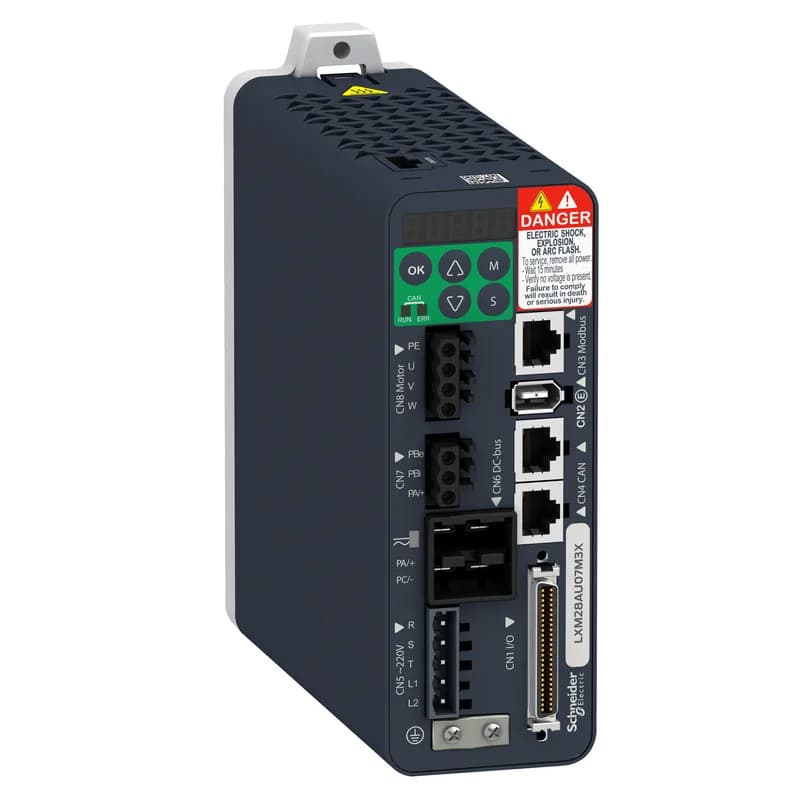

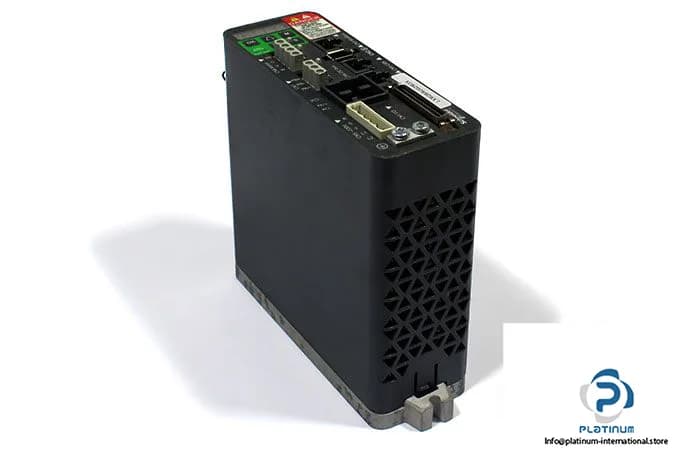

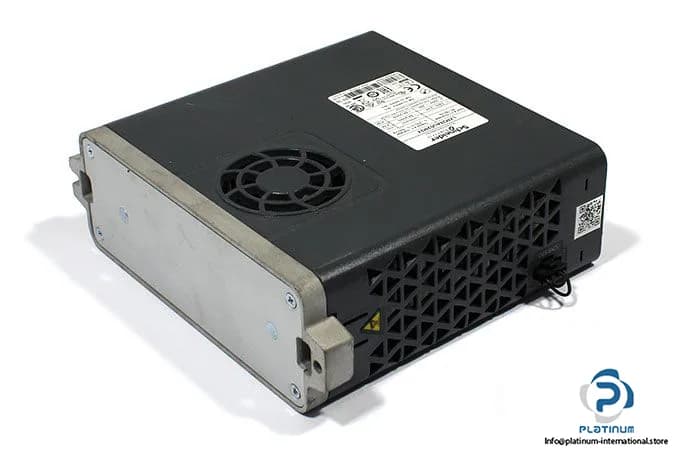

Schneider Electric LXM28AU02M3X

Schneider LXM28AU02M3X Lexium 28 Servo Drive, 200W, 1.5A

MPNLXM28AU02M3X
Active

Schneider Electric Lexium 28 servo drive, 200 W continuous power, 1.5 A output at 16 kHz, 200…240 V three-phase or single-phase supply, compact housing, no built-in EMC filter.

$355.60 – $848.21Ref. price · indicative, final on quote
Schneider Electric LXM28AU02M3X datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LXM28AU02M3X key specifications
ParameterValue
Range of productLexium 28
Product or component typeMotion servo drive
Output voltage3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Supply voltage limits200...255 V three phase 170...255 V single phase
Supply voltage200...240 V - 10...15 %)three phase 200...240 V - 20...15 %)single phase
Line current2.4 A 226.8 % 220 V, single phase 2.4 A 200.7 % 220 V, three phase
Output current 3s peak4.5 A 220 V
Maximum leakage current1.3 mA
Continuous output current1.5 A 16 kHz
Nominal power0.2 kW 220 V 16 kHz
Continuous power200 W 220 V
Supply frequency50/60 Hz - 5...5 %

All specifications

LXM28AU02M3X additional specifications
ParameterValue
Network frequency47.5...63 Hz
Switching frequency16 kHz
PhasesThree phase Single phase
EMC filterWithout EMC filter
CategoryUS1PC5118262
Device short nameLXM28A
Format of the driveCompact housing
Overvoltage categoryIII

Product details

The Schneider LXM28AU02M3X is an active Lexium 28 motion servo drive with 0.2 kW continuous power at 220 V and 16 kHz switching frequency. It accepts three-phase 200…255 V or single-phase 170…255 V. Continuous output current is 1.5 A at 16 kHz, peak 4.5 A at 220 V.

16 kHz switching frequency; 200 W continuous output at 220 V. Supply voltage three-phase 200…255 V or single-phase 170…255 V. Drive does not include an EMC filter. Maximum leakage current is 1.3 mA; that’s consistent with a drive of this size. Overvoltage category III applies — front-end protection must be rated for distribution-level transient voltages.

Installation brief

Compact housing format (Lexium 28 standard). Supply frequency must be 50/60 Hz ±5 %; the network frequency tolerance is wider (47.5…63 Hz). The drive can be mounted in a panel with clearance for heat dissipation — no derating curve is given in evidence, so maintain ambient air flow. No built-in EMC filter means a filter is recommended on the line side for compliance-sensitive environments.

Frequently asked questions

What supply voltages and phase configurations does the LXM28AU02M3X accept?

It accepts three-phase 200…255 V and single-phase 170…255 V. The listed phase spec is 'Three phase Single phase', meaning it runs on either. Check the nameplate for the specific configuration being wired.

Does this drive include an internal EMC filter?

No, the EMC filter is not built in. An external filter is required for applications needing conducted emissions compliance.
