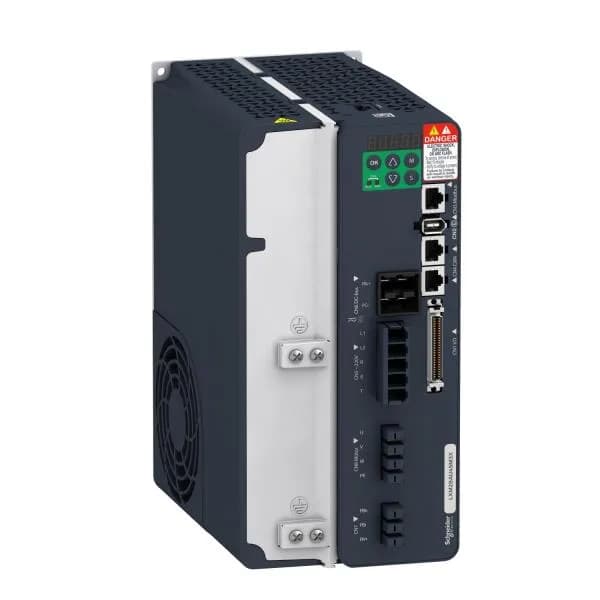

Schneider Electric LXM28AU45M3X
MPNLXM28AU45M3X
Active
Lexium 28A Servo Drive
$830.58 – $1,885.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium 28 |
| Product or component type | Motion servo drive |
| Output voltage | 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m |
| Supply voltage limits | 200...255 V three phase |
| Supply voltage | 200...240 V - 10...15 %)three phase |
| Line current | 17.9 A 147.1 % 220 V, three phase |
| Output current 3s peak | 61 A 220 V |
| Maximum leakage current | 1.55 mA |
| Continuous output current | 22.9 A 8 kHz |
| Nominal power | 4.5 kW 220 V 8 kHz |
| Continuous power | 4500 W 220 V |
| Supply frequency | 50/60 Hz - 5...5 % |
All specifications
| Parameter | Value |
|---|---|
| Network frequency | 47.5...63 Hz |
| Switching frequency | 8 kHz |
| Phases | Three phase |
| EMC filter | Without EMC filter |
| Category | US1PC5118262 |
| Device short name | LXM28A |
| Format of the drive | Compact housing |
| Overvoltage category | III |
MPN
LXM28AU45M3X
