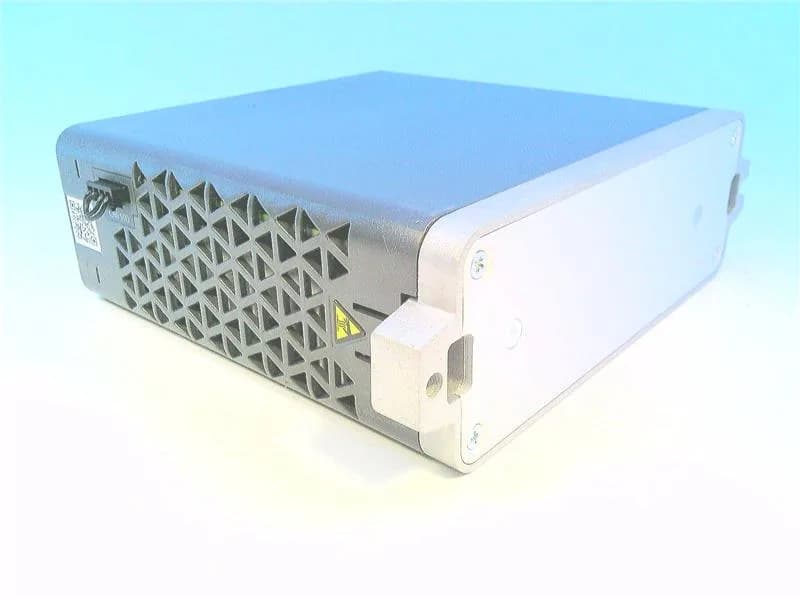

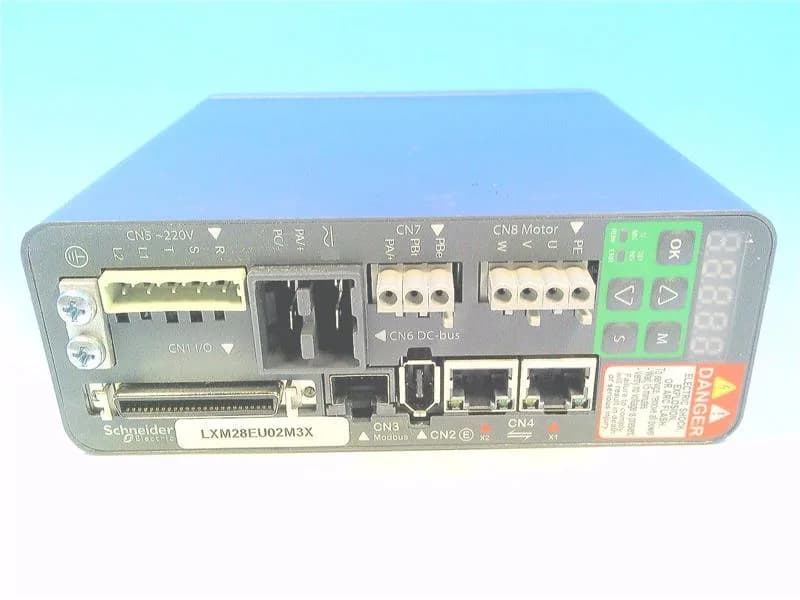

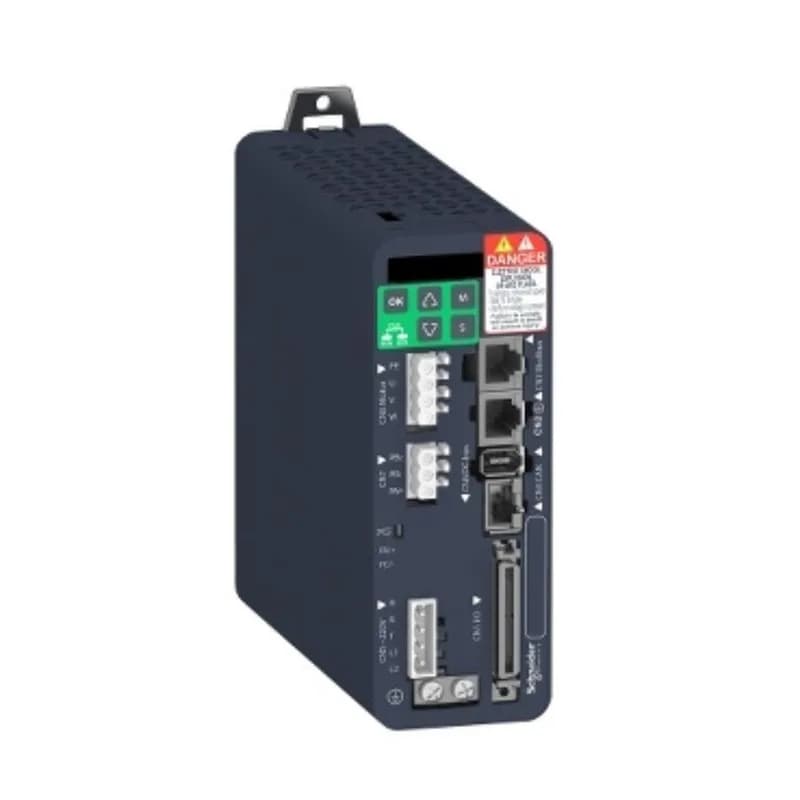

Schneider Electric LXM28EU02M3X

Schneider LXM28EU02M3X Lexium 28 Servo Drive, 1.5 A Continuo

MPNLXM28EU02M3X
Active

Schneider Electric Lexium 28E servo drive, LXM28EU02M3X, compact housing, 0.2 kW nominal power, 1.5 A continuous output at 16 kHz.

$864.87 – $1,019.00Ref. price · indicative, final on quote
Schneider Electric LXM28EU02M3X datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LXM28EU02M3X key specifications
ParameterValue
Range of productLexium 28
Product or component typeMotion servo drive
Output voltage3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Supply voltage limits200...255 V three phase 170...255 V single phase
Supply voltage200...240 V - 10...15 %)three phase 200...240 V - 20...15 %)single phase
Line current2.4 A 226.8 % 220 V, single phase 2.4 A 200.7 % 220 V, three phase
Output current 3s peak4.5 A 220 V
Maximum leakage current1.3 mA
Continuous output current1.5 A 16 kHz
Nominal power0.2 kW 220 V 16 kHz
Continuous power200 W 220 V
Supply frequency50/60 Hz - 5...5 %

All specifications

LXM28EU02M3X additional specifications
ParameterValue
Network frequency47.5...63 Hz
Switching frequency16 kHz
PhasesThree phase Single phase
EMC filterWithout EMC filter
CategoryUS1PC5118262
Device short nameLXM28E
Format of the driveCompact housing
Overvoltage categoryIII

Product details

Integrator’s spec recap

The LXM28EU02M3X: This Lexium 28E servo drive carries an active lifecycle status — no phase-out or last-time-buy window on record. The supply voltage range spans 200…255 V three phase and 170…255 V single phase, so the same drive can drop into either power architecture provided you respect the respective lower limits (20 % below nominal on single-phase, 15 % below on three-phase). The datasheet rates continuous output current at 1.5 A for a switching frequency of 16 kHz, which sets the thermal current limit for continuous-duty motor sizing. Nominal power is rated 0.2 kW at 220 V / 16 kHz. Overvoltage category III applies, which matters for line-side coordination on a grounded wye system.

Frequently asked questions

What supply phase configurations does this drive support?

It is rated for both three-phase (200…255 V) and single-phase (170…255 V) input. The voltage tolerances are –15 % on three-phase and –20 % on single-phase. Phase type must be selected at installation and affects the acceptable voltage window.
