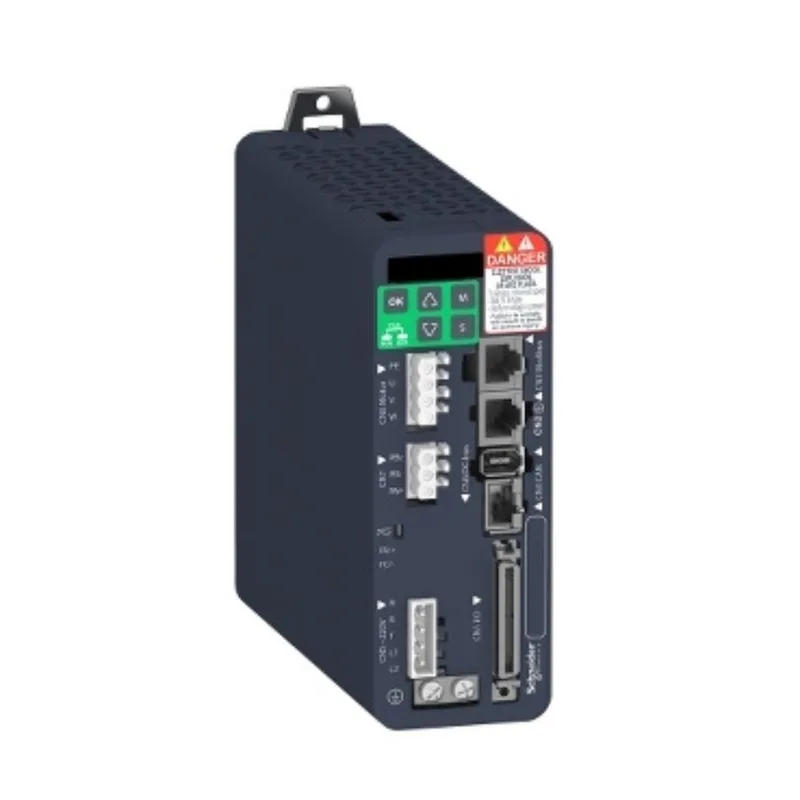

Schneider LXM28EU10M3X EtherCAT Servo Drive
MPNLXM28EU10M3X
Active
Lexium 28E Servo Drive
$1,143.00 – $1,172.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium 28 |
| Product or component type | Motion servo drive |
| Output voltage | 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m |
| Supply voltage limits | 200...255 V three phase 170...255 V single phase |
| Supply voltage | 200...240 V - 10...15 %)three phase 200...240 V - 20...15 %)single phase |
| Line current | 8.5 A 176.3 % 220 V, single phase 8.5 A 155.5 % 220 V, three phase |
| Output current 3s peak | 21 A 220 V |
| Maximum leakage current | 4.5 mA |
| Continuous output current | 7 A 16 kHz |
| Nominal power | 1 kW 220 V 16 kHz |
| Continuous power | 1000 W 220 V |
| Supply frequency | 50/60 Hz - 5...5 % |
All specifications
| Parameter | Value |
|---|---|
| Network frequency | 47.5...63 Hz |
| Switching frequency | 16 kHz |
| Phases | Three phase Single phase |
| EMC filter | Without EMC filter |
| Category | US1PC5118262 |
| Device short name | LXM28E |
| Format of the drive | Compact housing |
| Overvoltage category | III |
MPN
LXM28EU10M3X
