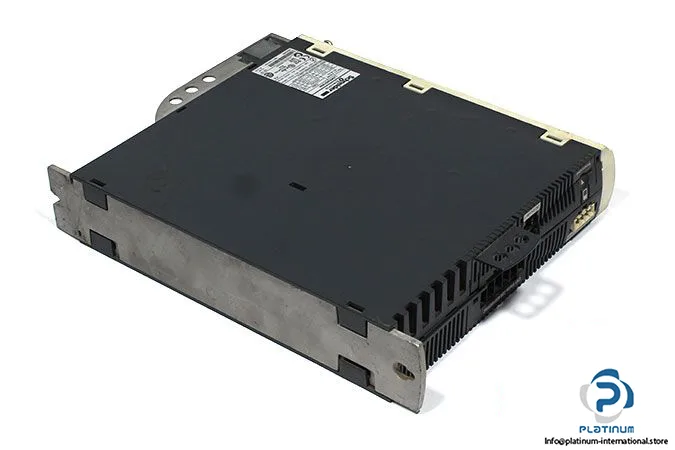

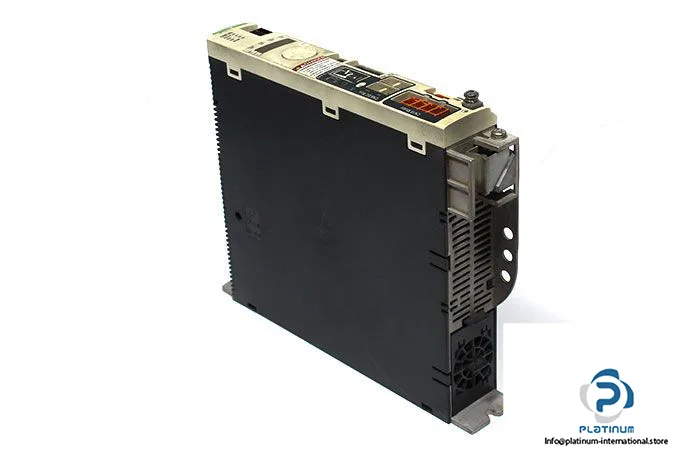

Schneider LXM32AU60N4 480V Servo Drive

MPNLXM32AU60N4

Active

SQUARE D LXM32AU60N4: LXM32A CAN RJ45 6A RMS PEAK 3PH 480V

$521.97Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LXM32AU60N4 key specifications
Parameter	Value
Range of product	Lexium 32
Product or component type	Motion servo drive
Output voltage	19 V < 9 V EN/IEC 61131-2 type 1 Positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
Supply voltage limits	170...264 V 323...528 V
Supply voltage	200...240 V - 15...10 % 380...480 V - 15...10 %
Line current	1.7 A 97 % 208 V, with external line choke 2 mH 1.8 A 108 % 400 V, with external line choke 2 mH 1.6 A 116 % 480 V, with external line choke 2 mH 1.8 A 132 % 208 V, without line choke 1.4 A 191 % 400 V, without line choke 1.2 A 201 % 480 V, without line choke
Output current 3s peak	6 A 208 V 5 s 6 A 480 V 5 s
Maximum leakage current	30 mA
Continuous output current	1.5 A 8 kHz
Nominal power	0.35 kW 208 V 8 kHz 0.4 kW 400 V 8 kHz 0.4 kW 480 V 8 kHz
Continuous power	400 W 208 V 800 W 400 V 800 W 480 V
Supply frequency	50/60 Hz - 5...5 %
