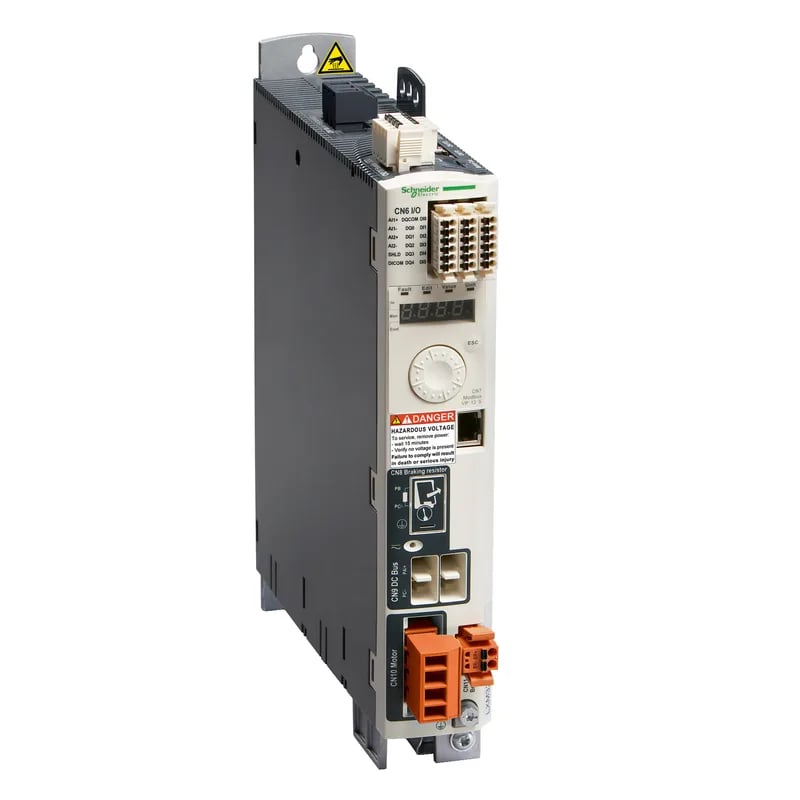

Schneider LXM32CD12N4 Compact Servo Drive

MPNLXM32CD12N4

Active

SQD LXM32CD12N4 LXM32C P/D,+/|SQD LXM32CD12N4 LXM32C P/D,+/

$593.09 – $1,570.00Ref. price · indicative, final on quote

Request quote

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LXM32CD12N4 key specifications
Parameter	Value
Range of product	Lexium 32
Product or component type	Motion servo drive
Output voltage	19 V < 9 V EN/IEC 61131-2 type 1 Positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
Supply voltage limits	170...264 V 323...528 V
Supply voltage	200...240 V - 15...10 % 380...480 V - 15...10 %
Line current	3.1 A 79 % 208 V, with external line choke 2 mH 3.4 A 90 % 400 V, with external line choke 2 mH 2.9 A 98 % 480 V, with external line choke 2 mH 3.6 A 136 % 208 V, without line choke 2.9 A 177 % 400 V, without line choke 2.4 A 182 % 480 V, without line choke
Output current 3s peak	12 A 208 V 5 s 12 A 480 V 5 s
Maximum leakage current	30 mA
Continuous output current	3 A 8 kHz
Nominal power	0.7 kW 208 V 8 kHz 0.9 kW 400 V 8 kHz 0.9 kW 480 V 8 kHz
Continuous power	800 W 208 V 1600 W 400 V 1600 W 480 V
Supply frequency	50/60 Hz - 5...5 %
