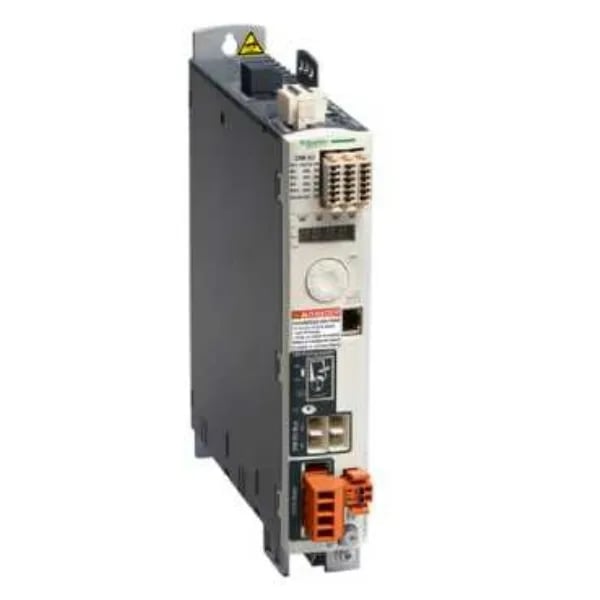

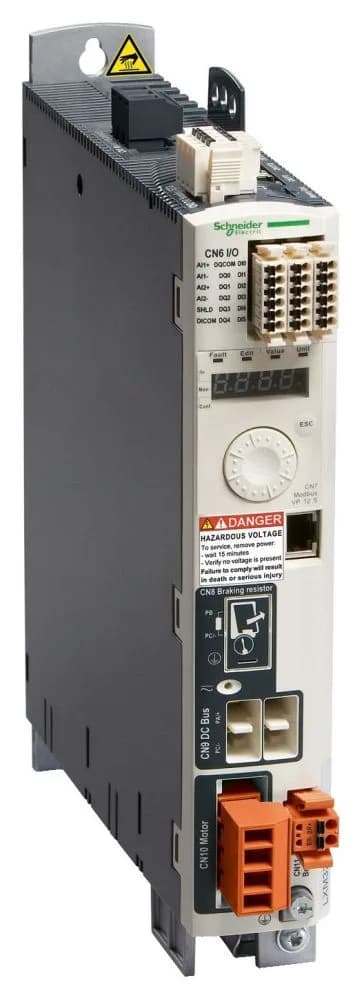

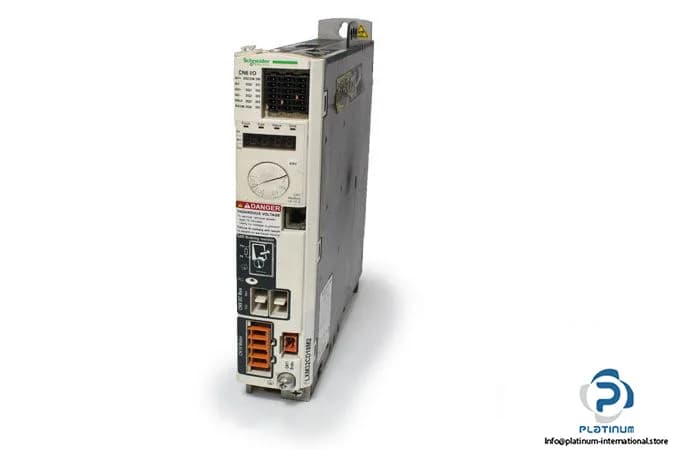

Schneider LXM32CD18M2 1 kW Compact Drive

MPNLXM32CD18M2

Active

SQUARE D LXM32CD18M2: LXM32C P/D, +/- 10V 18A RMS PEAK 1PH 230V

$551.18 – $1,490.00Ref. price · indicative, final on quote

Request quote

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LXM32CD18M2 key specifications
Parameter	Value
Range of product	Lexium 32
Product or component type	Motion servo drive
Output voltage	19 V < 9 V EN/IEC 61131-2 type 1 Positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
Supply voltage limits	85...132 V 170...264 V
Supply voltage	100...120 V - 15...10 % 200...240 V - 15...10 %
Line current	9.9 A 74 % 115 V, with external line choke 2 mH 10.6 A 93 % 230 V, with external line choke 2 mH 8.5 A 147 % 115 V, without line choke 8.4 A 148 % 230 V, without line choke
Output current 3s peak	10 A 115 V 5 s 18 A 230 V 5 s
Maximum leakage current	30 mA
Continuous output current	6 A 8 kHz
Nominal power	0.5 kW 115 V 8 kHz 1 kW 230 V 8 kHz
Continuous power	800 W 115 V 1600 W 230 V
Supply frequency	50/60 Hz - 5...5 %
