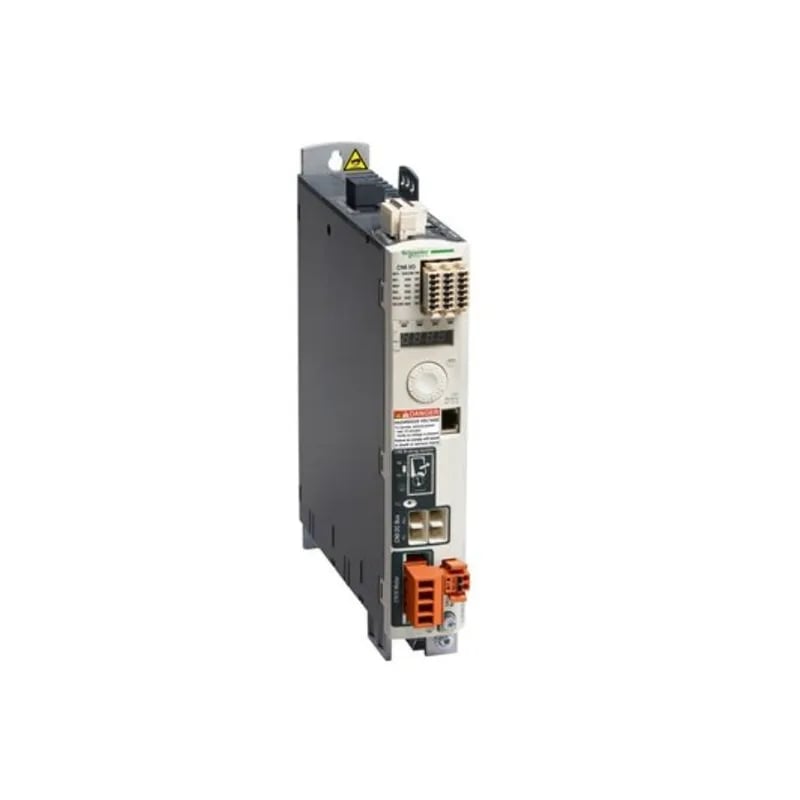

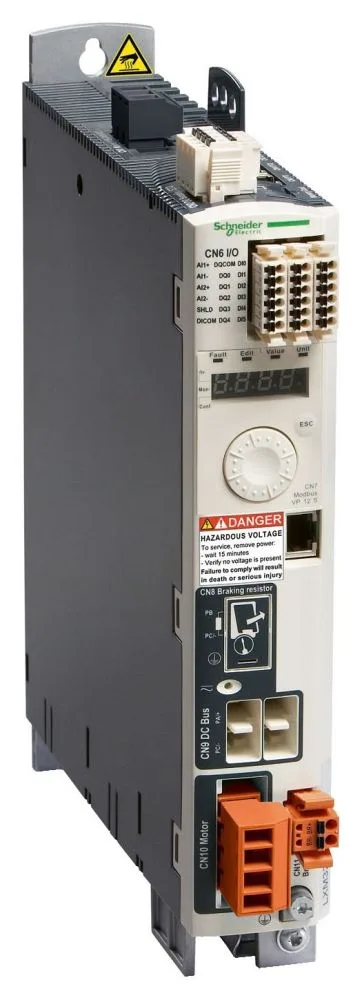

Schneider LXM32CU90M2 Servo Drive 2kW 230V

MPNLXM32CU90M2

Active

SQUARE D LXM32CU90M2: LXM32C P/D, +/- 10V 9A RMS PEAK 1PH 230V

$473.71 – $1,265.00Ref. price · indicative, final on quote

Request quote

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LXM32CU90M2 key specifications
Parameter	Value
Range of product	Lexium 32
Product or component type	Motion servo drive
Output voltage	19 V < 9 V EN/IEC 61131-2 type 1 Positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
Supply voltage limits	85...132 V 170...264 V
Supply voltage	100...120 V - 15...10 % 200...240 V - 15...10 %
Line current	5.2 A 90 % 115 V, with external line choke 2 mH 6.3 A 107 % 230 V, with external line choke 2 mH 5.4 A 159 % 115 V, without line choke 4.5 A 166 % 230 V, without line choke
Output current 3s peak	6 A 115 V 5 s 9 A 230 V 5 s
Maximum leakage current	30 mA
Continuous output current	3 A 8 kHz
Nominal power	0.3 kW 115 V 8 kHz 0.5 kW 230 V 8 kHz
Continuous power	400 W 115 V 900 W 230 V
Supply frequency	50/60 Hz - 5...5 %
