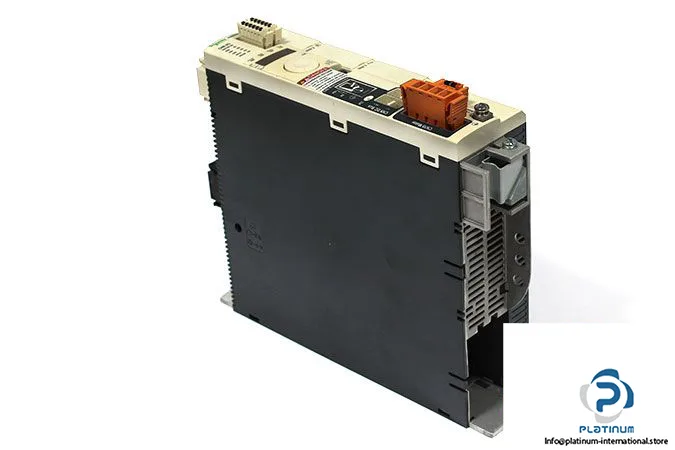

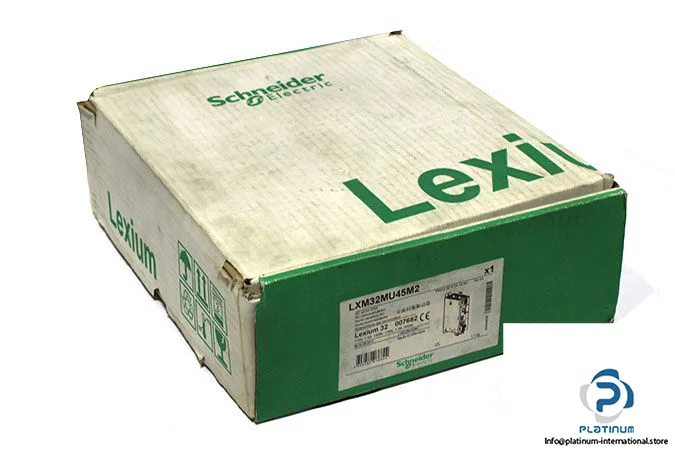

Schneider LXM32MU45M2 0.3 kW Servo Drive
MPNLXM32MU45M2
Active
LXM32 MODULAR 4 5A RMS PEAK 1PH 230V|LXM32 MODULAR 4 5A RMS PEAK 1PH 230V
$422.91Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium 32 |
| Product or component type | Motion servo drive |
| Output voltage | 19 V < 9 V EN/IEC 61131-2 type 1 Positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1 |
| Supply voltage limits | 85...132 V 170...264 V |
| Supply voltage | 100...120 V - 15...10 % 200...240 V - 15...10 % |
| Line current | 2.6 A 85 % 115 V, with external line choke 5 mH 3.4 A 100 % 230 V, with external line choke 5 mH 2.9 A 173 % 115 V, without line choke 2.9 A 181 % 230 V, without line choke |
| Output current 3s peak | 3 A 115 V 5 s 4.5 A 230 V 5 s |
| Maximum leakage current | 30 mA |
| Continuous output current | 1.5 A 8 kHz |
| Nominal power | 0.15 kW 115 V 8 kHz 0.3 kW 230 V 8 kHz |
| Continuous power | 200 W 115 V 500 W 230 V |
| Supply frequency | 50/60 Hz - 5...5 % |
All specifications
| Parameter | Value |
|---|---|
| Network frequency | 47.5...63 Hz |
| Switching frequency | 8 kHz |
| Phases | Single phase |
| Response time | 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
| EMC filter | Integrated |
| Category | US1PC5118261 |
| Device short name | LXM32M |
| Format of the drive | Book |
| Overvoltage category | III |
MPN
LXM32MU45M2
