Schneider Electric LXM32SU45M2
MPNLXM32SU45M2
Active

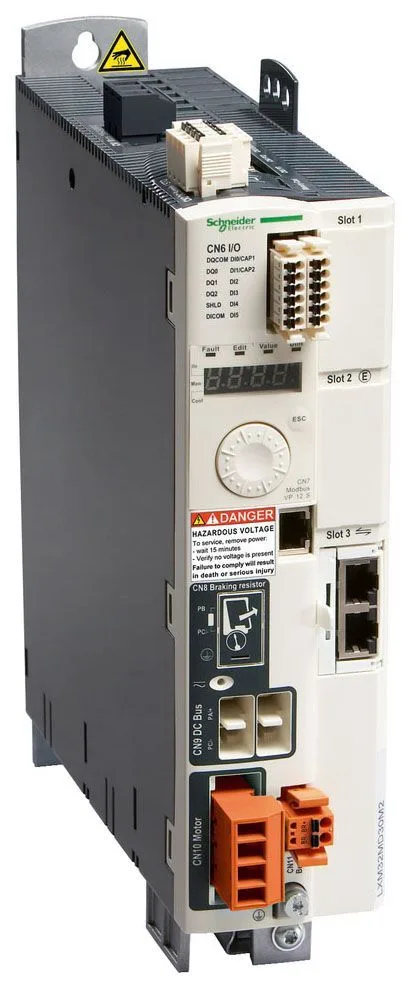

Square D LXM32SU45M2 0.4Hp Servo Drive|Square D LXM32SU45M2 0.4Hp Servo Drive
$1,510.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cable | Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Type of cooling | Natural convection |
| Range of product | Lexium 32 |
| Discrete input type | Capture CAP |
| Discrete output type | Logic DO)24 V DC |
| Product or component type | Motion servo drive |
| Output voltage | <= power supply voltage |
| Supply voltage limits | 85...132 V 170...264 V |
| Discrete input voltage | 24 V DC capture |
| Discrete output voltage | <= 30 V DC |
| Supply voltage | 100...120 V - 15...10 % 200...240 V - 15...10 % |
| Line current | 2.6 A 85 % 115 V, with external line choke 5 mH 3.4 A 100 % 230 V, with external line choke 5 mH 2.9 A 173 % 115 V, without line choke 2.9 A 181 % 230 V, without line choke |
All specifications
| Parameter | Value |
|---|---|
| Braking current | 50 mA |
| Output current 3s peak | 3 A 115 V 5 s 4.5 A 230 V 5 s |
| Maximum leakage current | 30 mA |
| Continuous output current | 1.5 A 8 kHz |
| Nominal power | 0.15 kW 115 V 8 kHz 0.3 kW 230 V 8 kHz |
| Continuous power | 200 W 115 V 500 W 230 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Switching frequency | 8 kHz |
| Phases | Single phase |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Communication interface | SERCOS III, Integrated |
| Electrical connection | Terminal 3 mm², AWG 12 CN8) |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Response time on output | 250 µs DO)discrete |
| EMC filter | Integrated |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Shock resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Operating altitude | <= 3280.84 ft (1000 m) without derating |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to EN/IEC 60068-2-6 |
| Depth | 9.3 in (237 mm) |
| Width | 2.7 in (68 mm) |
| Height | 10.6 in (270 mm) |
| Standards | EN/IEC 61800-3 |
| Marking | CE |
| Category | US1PC5118261 |
| Status LED | 1 LED (Red) servo drive voltage |
| Safety level | SIL 3 EN/IEC 61508 |
| Safety function | STO (safe torque off), Integrated |
| Device short name | LXM32S |
| Sampling duration | 0.25 ms |
| Tightening torque | CN8 4.4 lbf.in (0.5 N.m) |
| Operating position | Vertical +/- 10 degree |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B |
| Format of the drive | Book |
| Signalling function | Display of faults 7 segments |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 |
| Electrical isolation | Between power and control |
| Overvoltage category | III |
| Discrete input number | 2 capture |
| Discrete output logic | Positive or negative DO)EN/IEC 61131-2 |
| Discrete output number | 3 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Electromagnetic compatibility | Conducted EMC EN 55011 class A group 1 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) UL |
