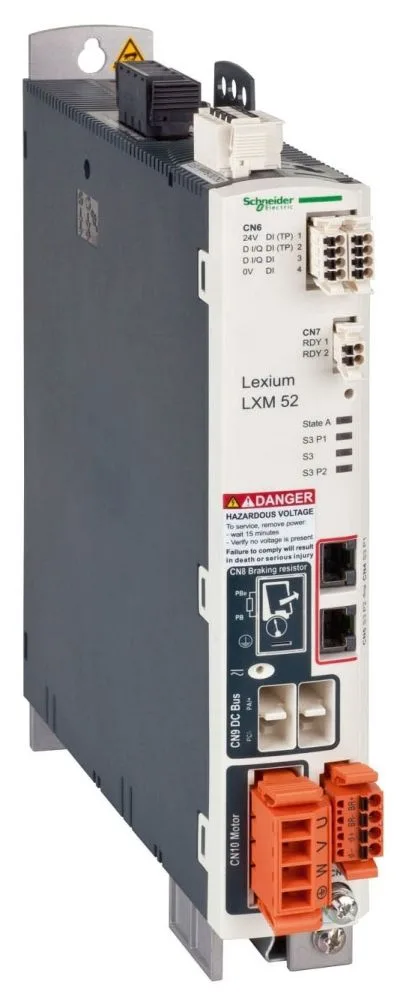

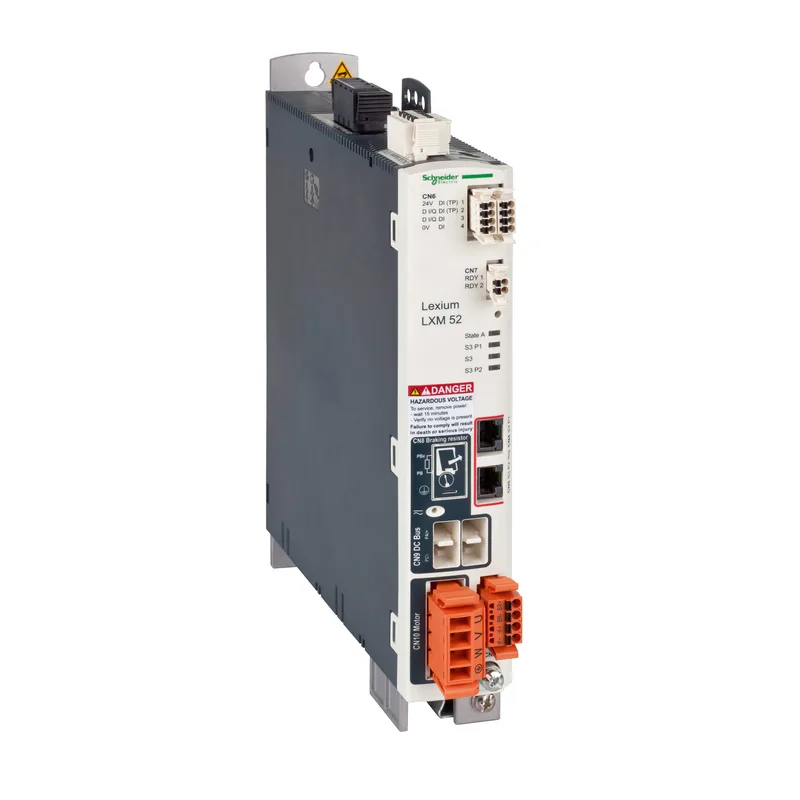

LXM52DD18C41000 - Schneider Electric
MPNLXM52DD18C41000
Active
Square D LXM52DD18C41000 Single Drive 18 Apk Accessry Kit Incl Sil3 Ple|Square D LXM52DD18C41000 Single Drive 18 Apk Accessry Kit Incl Sil3 Ple
$1,442.72 – $2,160.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PacDrive 3 |
| Product or component type | Single drive |
| Discrete input voltage | 24 V DC |
| Discrete output voltage | 24 V DC |
| Supply voltage | 208...480 V - 15...10 % |
| Output current 3s peak | 18 A |
| Continuous output current | 6 A 8 kHz |
| Nominal power | 1.8 kW |
| Continuous power | 3.3 kW |
| Supply frequency | 50...60 Hz - 5...5 % |
| Switching frequency | 8 kHz |
| I/O channels | 4 digital |
All specifications
| Parameter | Value |
|---|---|
| Phases | Three phase |
| IP degree of protection | IP20 IEC 60721-3-3 |
| Communication interface | SERCOS III, Integrated |
| Electrical connection | Terminal 0.75...5.3 mm², AWG 18...AWG 10 CN1) |
| Pollution degree | 2 |
| Shock resistance | 100 m/s² IEC 60721-3-3 |
| Relative humidity | 5...95 % |
| Vibration resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Depth | 8.5 in (217 mm) |
| Width | 1.9 in (48 mm) |
| Height | 10.6 in (270 mm) |
| Standards | UL 508C IEC 61800-3 |
| Category | US1PC5218355 |
| Component name | LXM52 |
| Device short name | LXM 52 |
| Tightening torque | CN1 6.02 lbf.in (0.68 N.m) |
| Contact bounce time | > 1 ms compliment of STO_A, compliment of STO_B |
| Overvoltage category | III |
| Environmental characteristic | 3K3 conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
LXM52DD18C41000
