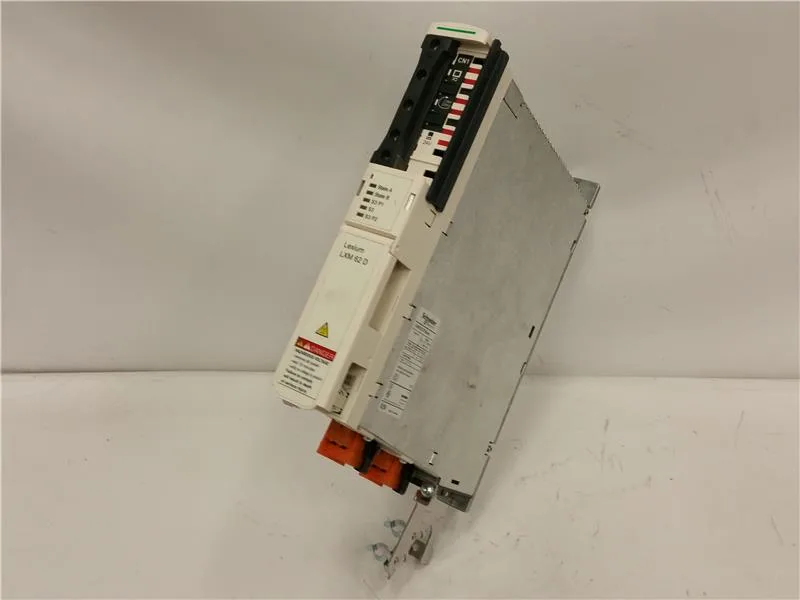

Schneider LXM62DD27B21000 Servo Drive
MPNLXM62DD27B21000
Active
LXM62DD27B21000 - SERVO DRIVE by TELEMECANIQUE
$9,722.97Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PacDrive 3 |
| Product or component type | Double drive |
| Discrete input voltage | 24 V DC for - 20...25 % |
| Discrete output voltage | 24 V DC |
| Supply voltage | 400 V (- 10...10 %) for three phase 230 V (- 10...10 %) for three phase 230 V (- 10...10 %) for single phase |
| Output current 3s peak | 27 A at 4 kHz |
| Continuous output current | 9 A at 4 kHz |
| Supply frequency | 50/60 Hz - 5...5 % |
| Switching frequency | 8 kHz |
| I/O channels | 2 digital 2 touch probe |
| Network number of phases | Three phase |
| IP degree of protection | IP20 conforming to IEC 60529 |
All specifications
| Parameter | Value |
|---|---|
| Communication interface | SERCOS III, integrated |
| Electrical connection | Terminal, clamping capacity: 0.2...15 mm², AWG 24...AWG 16 (CN4) Terminal, clamping capacity: 0.5...16 mm², AWG 20...AWG 6 (CN5) Terminal, clamping capacity: 0.75...16 mm², AWG 18...AWG 6 (CN6) Terminal, clamping capacity: 0.2...6 mm², AWG 24...AWG 10 (CN7) |
| Pollution degree | 2 conforming to IEC 61800-5-2 |
| Shock resistance | 100 m/s² conforming to IEC 60721-3-3 |
| Relative humidity | 5...85 % |
| Vibration resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Standards | CSA C22.2 No 14 IEC 61800-5-2 IEC 61800-3 UL 508C IEC 61800-5-1 IEC 61508 ISO 13849-2 ISO 13849-1 IEC 62061 |
| Component name | LXM62 |
| Safety function | STO (safe torque off) |
| Device short name | LXM 62 |
| Tightening torque | CN1: 2.5 N.m |
| Overvoltage category | III |
| Environmental characteristic | 3K3 conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | 5...55 °C |
MPN
LXM62DD27B21000
