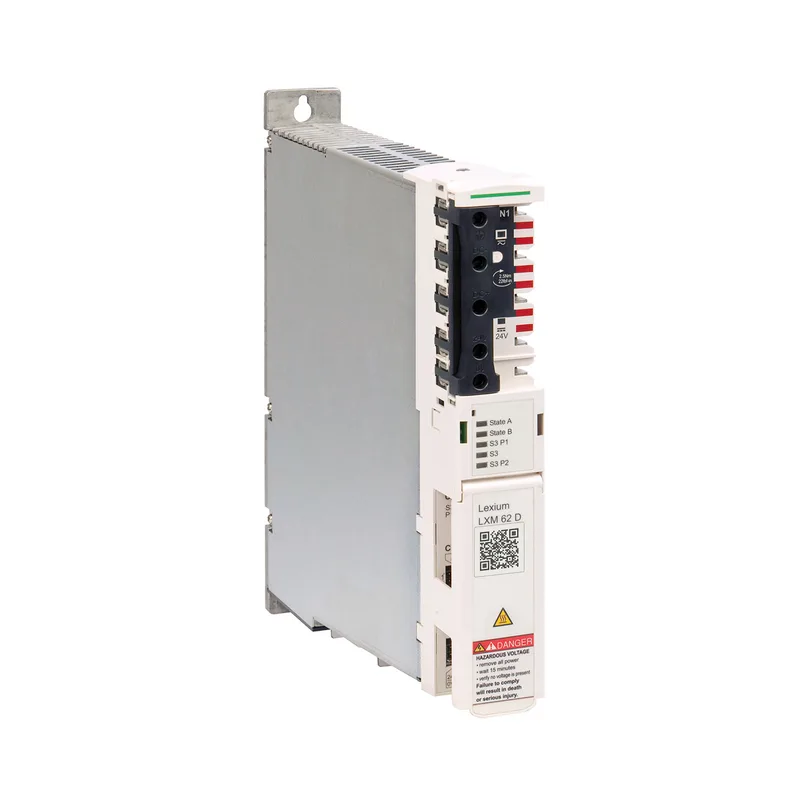

Schneider Electric LXM62DU60D21000
MPNLXM62DU60D21000
Active
SQD LXM62DU60D21000 DOUBLE DRIVE 6|SQD LXM62DU60D21000 DOUBLE DR
$1,856.74 – $4,260.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PacDrive 3 |
| Product or component type | Double drive |
| Discrete input voltage | 24 V DC for - 20...25 % |
| Discrete output voltage | 24 V DC |
| Supply voltage | 400 V - 10...10 %)three phase 230 V - 10...10 %)three phase 230 V - 10...10 %)single phase |
| Output current 3s peak | 6 A 4 kHz |
| Continuous output current | 2 A 4 kHz |
| Nominal power | 0.95 kW |
| Continuous power | 0.95 kW |
| Supply frequency | 50/60 Hz - 5...5 % |
| Switching frequency | 8 kHz |
| I/O channels | 2 digital 2 touch probe |
All specifications
| Parameter | Value |
|---|---|
| Phases | Three phase |
| IP degree of protection | IP20 IEC 60529 |
| Communication interface | SERCOS III, Integrated |
| Electrical connection | Terminal 0.2...15 mm², AWG 24...AWG 16 CN4) Terminal 0.5...16 mm², AWG 20...AWG 6 CN5) Terminal 0.75...16 mm², AWG 18...AWG 6 CN6) Terminal 0.2...6 mm², AWG 24...AWG 10 CN7) |
| Pollution degree | 2 IEC 61800-5-2 |
| Shock resistance | 100 m/s² IEC 60721-3-3 |
| Relative humidity | 5...85 % |
| Vibration resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Depth | 10.6 in (270 mm) |
| Width | 1.8 in (44.5 mm) |
| Height | 12.2 in (310 mm) |
| Standards | ISO 13849-2 CSA C22.2 No 14 ISO 13849-1 IEC 62061 UL 508C IEC 61800-5-1 IEC 61800-5-2 IEC 61508 IEC 61800-3 |
| Category | US1PC5218356 |
| Component name | LXM62 |
| Safety function | STO (safe torque off) |
| Device short name | LXM 62 |
| Tightening torque | CN1 22.1 lbf.in (2.5 N.m) |
| Overvoltage category | III |
| Environmental characteristic | 3K3 conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | 41...131 °F (5...55 °C) |
MPN
LXM62DU60D21000
