Schneider Electric LXM62PD84A11000

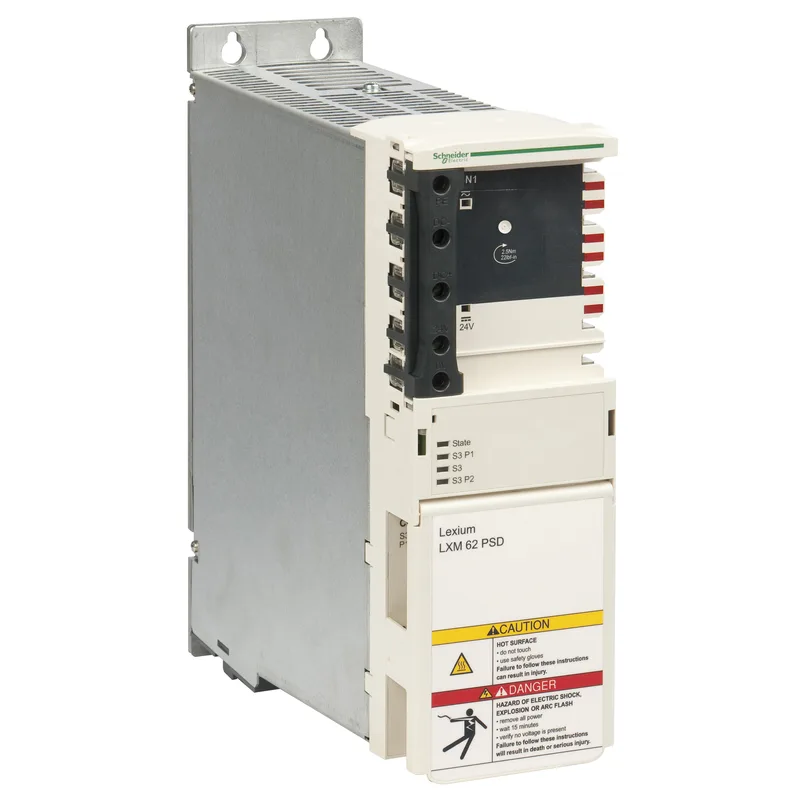

Schneider LXM62PD84A11000 Lexium 62 power supply, 22.1 kW, 84 A

MPNLXM62PD84A11000
Active

Schneider LXM62PD84A11000 Power Supplies.

$2,007.87Ref. price · indicative, final on quote
Schneider Electric LXM62PD84A11000 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LXM62PD84A11000 key specifications
ParameterValue
Output signal2 relays volt-free contacts
Range of productPacDrive 3
Supply circuit typeAC
Product or component typePower supply
Bus voltage270...700 V
Maximum DC bus voltage860 V
Supply voltage400 V three phase - 10...10 %) 230 V three phase - 10...10 %) 230 V single phase - 10...10 %)
Coil voltage24 V DC - 20...25 %)
Peak current42 A single phase AC 1 s 84 A three phase AC 1 s
Line rated current21 A single phase AC 42 A three phase AC
Power supply output current84 A
Maximum power44.2 kW 400 V three phase AC 53.2 kW 480 V three phase AC

All specifications

LXM62PD84A11000 additional specifications
ParameterValue
Nominal power22.1 kW 400 V three phase AC 26.6 kW 480 V three phase AC
Maximum braking power46 kW
Permanent braking power400 W
Supply frequency50/60 Hz +/- 5 %
IP degree of protectionIP20 IEC 60721-3-3 with plugged-in connectors)
Physical interfaceSERCOS III
Maximum cable capacity1.36 mF
Pollution degree2 IEC 60721-3-3
Shock resistance100 m/s² in operation IEC 60721-3-3 300 m/s² during transport IEC 60721-3-3
Vibration resistance10 m/s² IEC 60721-3-3
Depth10.6 in (270 mm)
Width3.5 in (89.5 mm)
Height12.2 in (310 mm)
StandardsUL 508C IEC 61800-5-1 IEC 61800-3
MarkingCE
CategoryUS1PC5218356
Holding time15 min
Safety levelCan reach SIL 2 IEC 61508 Can reach PL d/category 3 ISO 13849-1
Component nameLXM62
Braking resistance15 Ohm
Overvoltage categoryIII conforming to IEC 61800-5-1
Environmental characteristic3K3 IEC 60721-3-3 5...85 %
Ambient air temperature for storage-13...131 °F (-25...55 °C)
Ambient air temperature for operation104...131 °F (40...55 °C) (with current derating of 2 % per °C) 41...104 °F (5...40 °C)

Product details

Overview

It carries CE and UL certifications, meets IEC 61800-5-1 and UL 508C, and can reach SIL 2 per IEC 61508 or PL d/category 3 per ISO 13849-1 for safety-related applications.

Sizing and integration

Rated at 84 A continuous, the LXM62PD84A11000 supplies 84 A to the DC bus — it is sized for multi-axis Lexium 62 drive clusters rather than a single controller. The 1.36 mF maximum cable capacitance limits the total motor cable length; keep the sum of all connected axis cables under that value to avoid drive overvoltage trips.

The LXM62PD84A11000 is an active catalogue item in the PacDrive 3 range; no end-of-life notice is published. Standard lead time applies via RFQ. Compliance documentation includes CE marking, UL and CSA certifications, and California Proposition 65 declaration.
