Schneider Electric M9A26478
MPNM9A26478
Active

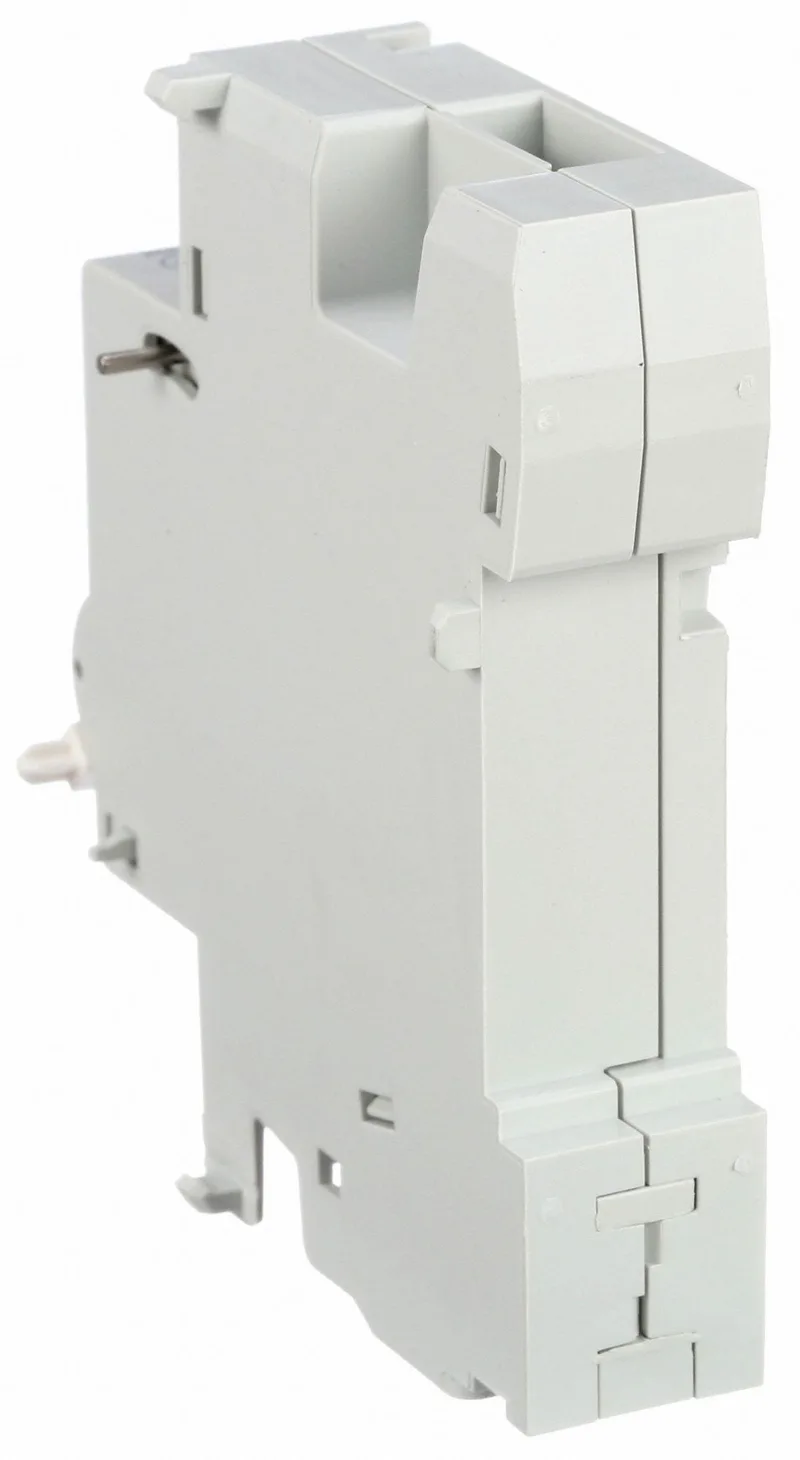

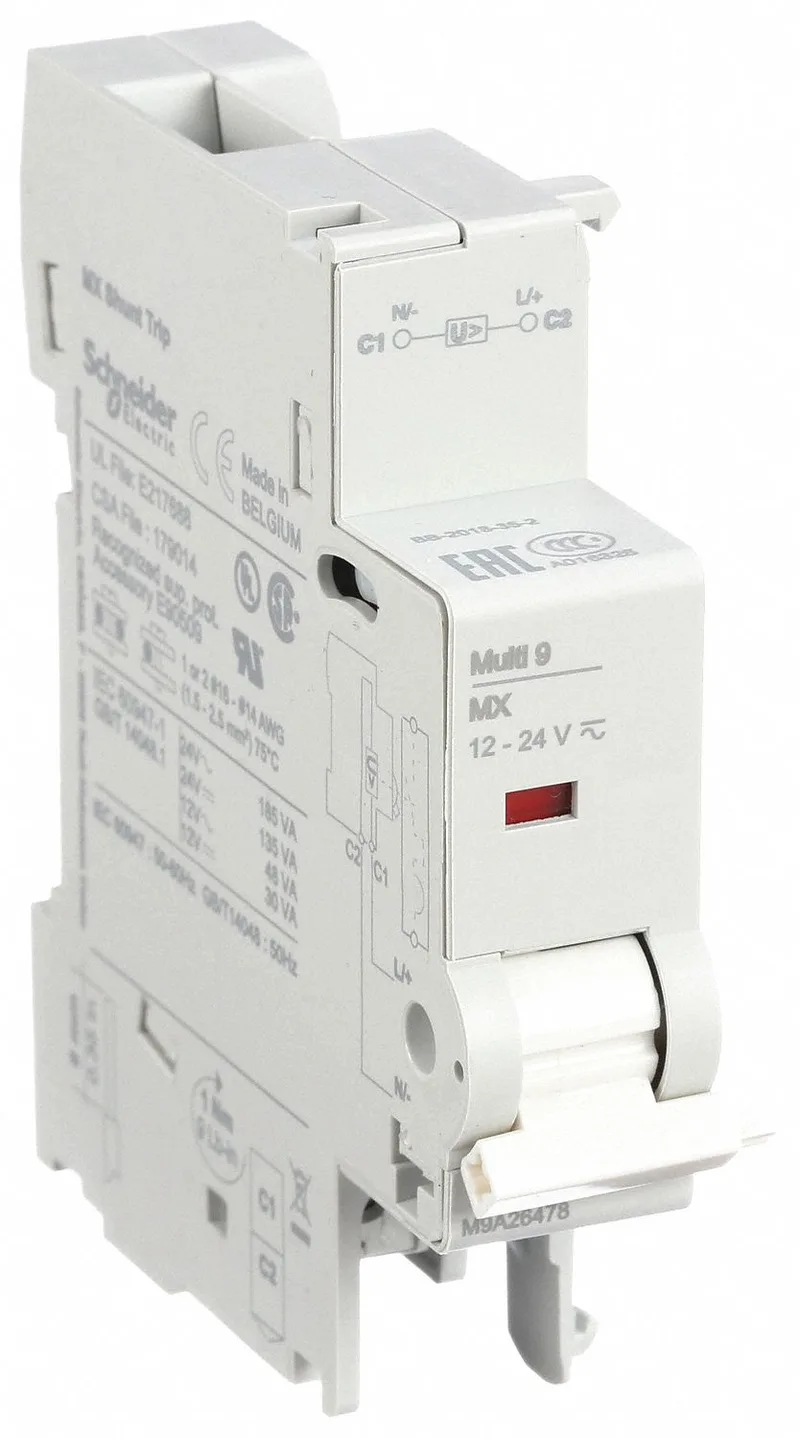

MULTI9 MX 12-24VAC 12-24VDC SHUNT RELEASE|MULTI9 MX 12-24VAC 12-24VDC SHUNT RELEASE
$64.09 – $104.08Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Multi9 |
| Product or component type | Shunt trip release |
| Coil voltage | 12...24 V AC 50/60 Hz 12...24 V DC |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Wire stripping length | 0.4 in (9 mm) for bottom connection |
| Connections - terminals | Clamp terminal bottom) - 1 0.004 in² (2.5 mm²) AWG 14) - rigid Clamp terminal bottom) - 2 0.002 in² (1.5 mm²) AWG 16) - rigid |
| Pollution degree | 3 |
| Relative humidity | 95 % 131 °F (55 °C) |
| Depth | 2.7 in (68 mm) |
| Width | 0.7 in (18 mm) |
| Height | 3.2 in (82.5 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-2 |
| Category | US10DE200948 |
| 9 mm pitches | 2 |
| Tropicalisation | 2 EN/IEC 60947-2 |
| Local signalling | Action indicator |
| Device short name | MX |
| Tightening torque | 8.9 lbf.in (1 N.m) bottom |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
| Comb busbar and distribution block compatibility | Top YES |
MPN
M9A26478
