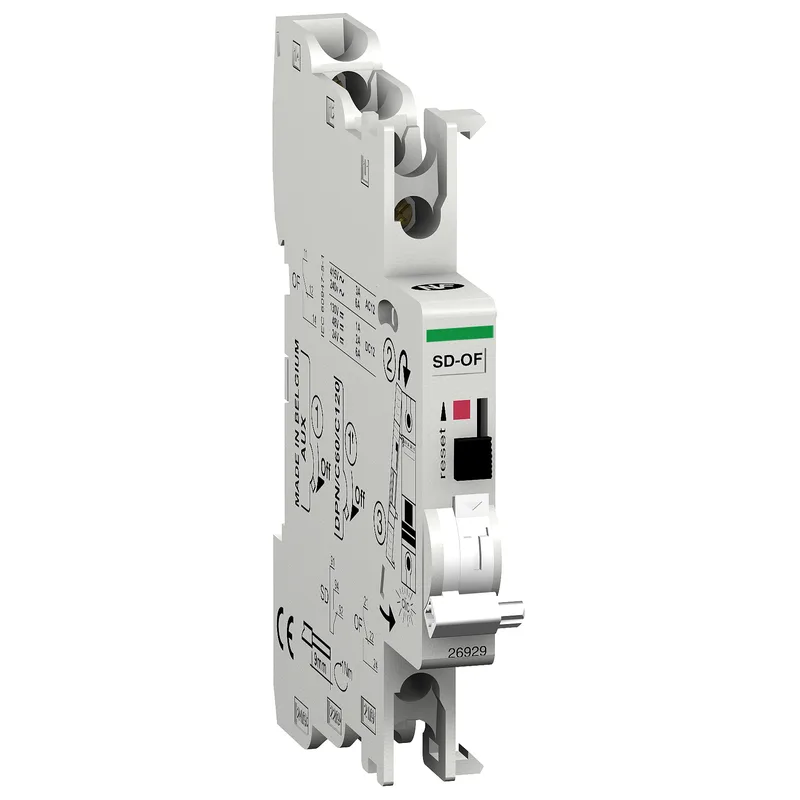

Schneider Electric M9A26929
MPNM9A26929
Obsolete
MULTI9 SD-OF 24-415VAC 24-130VDC CONTACT|MULTI9 SD-OF 24-415VAC 24-130VDC CONTACT
$36.83 – $46.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Multi9 |
| Product or component type | Double OC or fault contact |
| Coil voltage | 240...415 V AC 50/60 Hz 24...130 V DC |
| Voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Line rated current | 3 A at 415 V, AC 50/60 Hz 6 A at <= 240 V, AC 50/60 Hz |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Wire stripping length | 0.4 in (9 mm) for bottom connection |
| Connections - terminals | Clamp terminal bottom) 1 0.004 in² (2.5 mm²) AWG 14) - rigid Clamp terminal bottom) 2 0.002 in² (1.5 mm²) AWG 16) - rigid |
| Depth | 2.9 in (73.5 mm) |
| Width | 0.4 in (9 mm) |
All specifications
| Parameter | Value |
|---|---|
| Height | 3.5 in (90 mm) |
| Standards | EN/IEC 60947-5-1 EN 62019-2 |
| Category | US10DE200948 |
| 9 mm pitches | 1 |
| Device short name | SD + OF |
| Tightening torque | 8.9 lbf.in (1 N.m) bottom |
| Signal contacts composition | 2 C/O |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
| Comb busbar and distribution block compatibility | NO |
MPN
M9A26929
