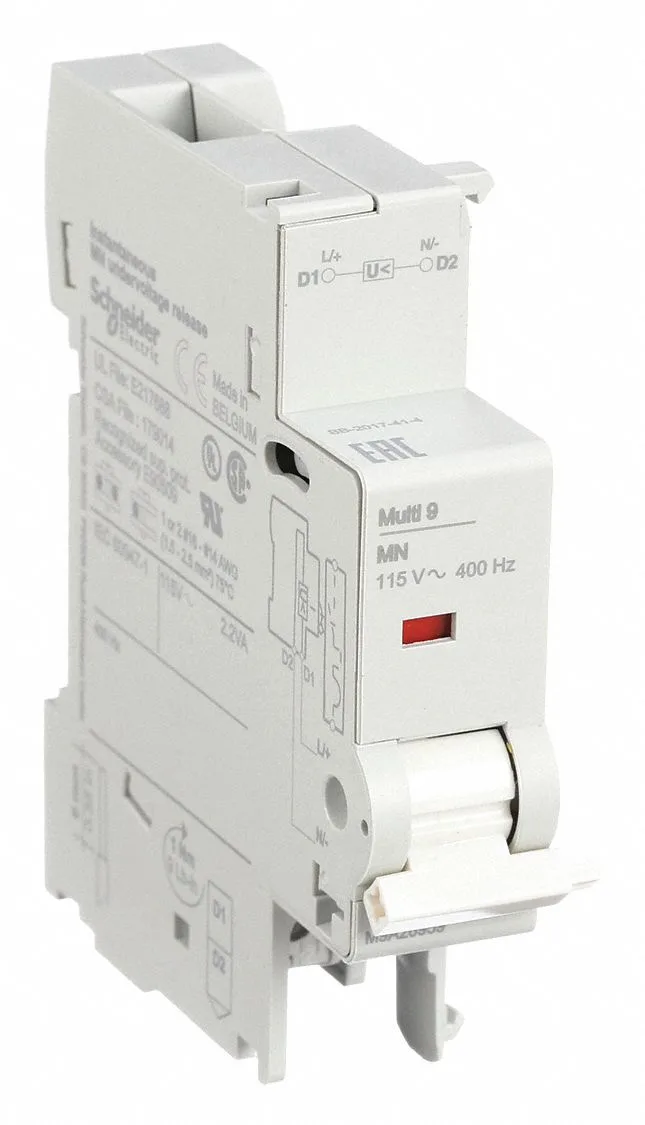

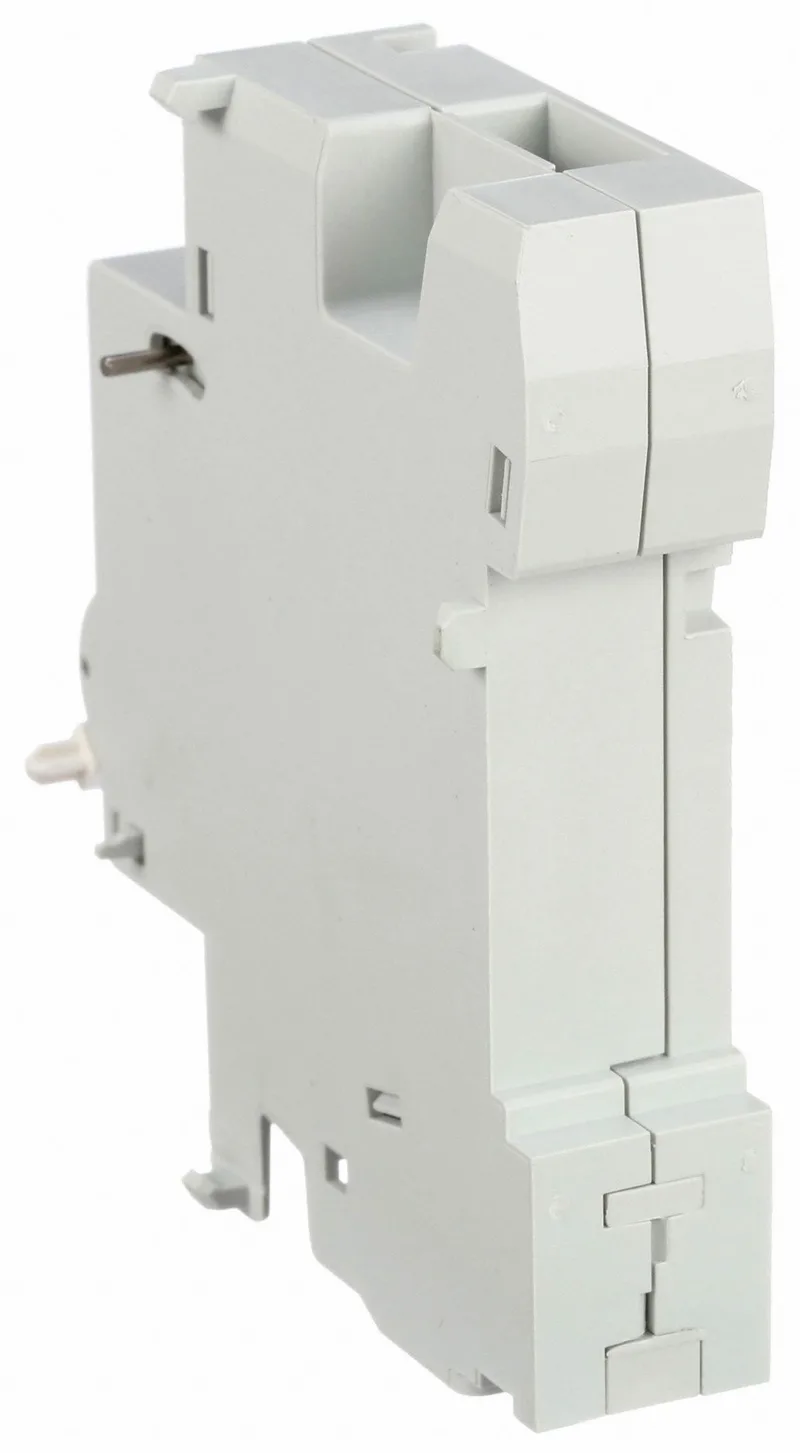

Schneider Electric M9A26959
MPNM9A26959
Active
SQD M9A26959 MULTI9 MN 115VAC|SQD M9A26959 MULTI9 MN 115VAC
$175.59 – $263.02Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Standard |
| Range of product | Multi9 |
| Product or component type | Undervoltage release |
| Coil voltage | 115 V AC 400 Hz 48 V DC |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Wire stripping length | 0.4 in (9 mm) for bottom connection |
| Connections - terminals | Clamp terminal bottom) - 1 0.004 in² (2.5 mm²) AWG 14) - rigid Clamp terminal bottom) - 2 0.002 in² (1.5 mm²) AWG 16) - rigid |
| Pollution degree | 3 |
| Depth | 2.7 in (68 mm) |
| Width | 0.7 in (18 mm) |
| Height | 3.2 in (82.5 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-2 |
| Category | US10DE200948 |
| 9 mm pitches | 2 |
| Local signalling | Action indicator |
| Device short name | MN |
| Tightening torque | 8.9 lbf.in (1 N.m) bottom |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
| Comb busbar and distribution block compatibility | Top YES |
MPN
M9A26959
