Schneider Electric M9L31277
MPNM9L31277
Active

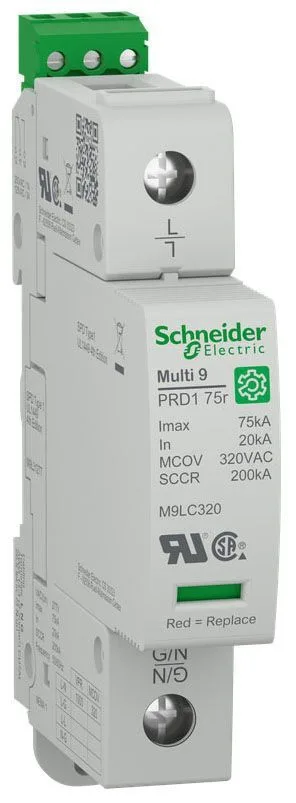

surge arrester, Multi9 PRD1 75r, 1P, 277 V
$84.59 – $95.18Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Surge arrester type | Electrical distribution network |
| Disconnector device type | Associated circuit breaker 30 A C 10 kA |
| Product or component type | Surge arrester |
| Surge arrester class type | Type 1 |
| Short-circuit withstand | 200 kA |
| Maximum [Up] voltage protection level | <1000 V L/N |
| [Uc] maximum continuous operating voltage | Common mode 320 V AC L/N |
| [Iimp] impulse current | 75 kA |
| Maximum discharge current | 75 kA |
| Nominal discharge current | Common mode 20 kA L/PE) |
| Poles description | 1P |
| IP degree of protection | NEMA 1 built-in: |
All specifications
| Parameter | Value |
|---|---|
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Wire stripping length | 0.4 in (10 mm) for L/N connection 0.4 in (10 mm) for PE connection 0.2 in (6 mm) for dry contacts connection |
| Connections - terminals | Tunnel type terminal 0.009...0.05 in² (6...35 mm²) AWG 10...AWG 2) - rigid Tunnel type terminal 0.009...0.04 in² (6...25 mm²) AWG 10...AWG 4) - flexible Tunnel type terminal dry contacts) 0.0008...0.002 in² (0.5...1.5 mm²) |
| Response time | < 25 ns |
| Pollution degree | 3 |
| Relative humidity | 0...95 % |
| Operating altitude | 6561.68 ft (2000 m) |
| Surge arrester technology | MOV |
| Color | Gray RAL 7035) |
| Depth | 2.8 in (71.4 mm) |
| Width | 0.7 in (17.5 mm) |
| Height | 3.6 in (91.7 mm) |
| Standards | UL 1449:ed. 4 |
| Range | Multi9 |
| Category | US1DE1B08468 |
| 9 mm pitches | 2 |
| Local signalling | Green mechanical indicator operating Red mechanical indicator end of life |
| Device short name | PRD1 75r |
| Remote signalling | With |
| Tightening torque | 26.6 lbf.in (3 N.m) L/N 26.6 lbf.in (3 N.m) PE |
| Wiring configuration | 2-wire |
| Signal contacts composition | 1 SD (1 C/O) |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
MPN
M9L31277
