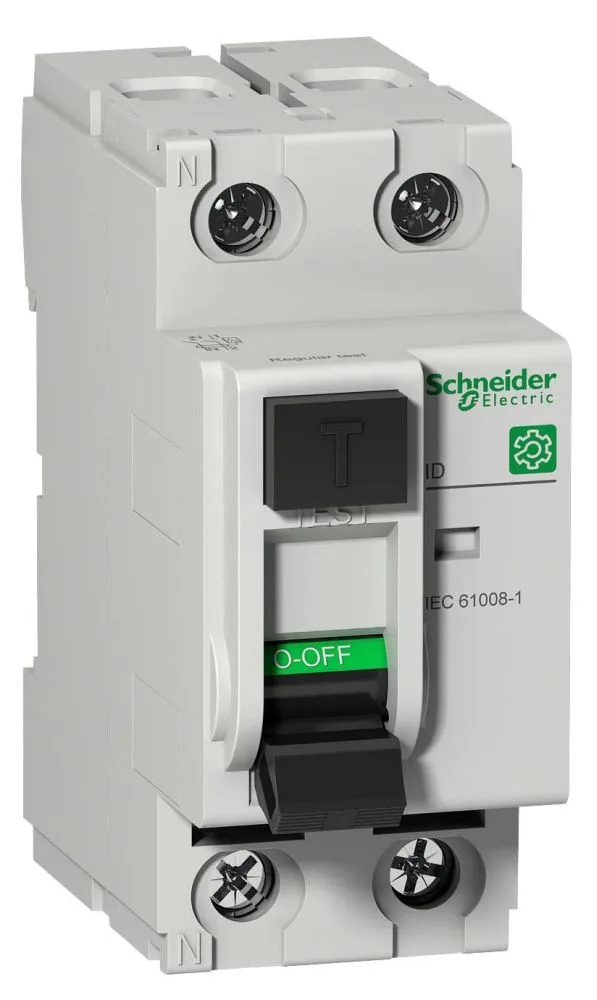

Schneider Electric M9R11225
MPNM9R11225
Active
RESIDUAL CURRENT SWITCH 240V 25A|RESIDUAL CURRENT SWITCH 240V 25A
$68.58 – $194.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Residual current circuit breaker (RCCB) |
| Voltage | 440 V AC 50 Hz EN/IEC 61008-1 |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 61008-1 |
| Surge current | 250 A |
| Line rated current | 25 A |
| Residual current tripping technology | Voltage independent |
| Rated conditional short-circuit current | Inc 10 kA |
| Network frequency | 50 Hz |
| Poles description | 2P |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Wire stripping length | 0.6 in (15 mm) for top or bottom connection |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002...0.05 in² (1...35 mm²) - rigid Tunnel type terminal top or bottom) 0.002...0.04 in² (1...25 mm²) - flexible Tunnel type terminal top or bottom) 3 0.02 in² (16 mm²) - rigid Tunnel type terminal top or bottom) 3 0.02 in² (10 mm²) - flexible Tunnel type terminal top or bottom) 0.002...0.04 in² (1...25 mm²) - flexible with ferrule |
| Pollution degree | 3 |
| Relative humidity | 95 % 131 °F (55 °C) |
| Color | Gray |
| Depth | 2.9 in (73 mm) |
| Width | 1.4 in (36 mm) |
| Height | 3.2 in (81 mm) |
| Electrical durability | 2000 cycles |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 61008-1 |
| Range | Multi9 |
| Category | US10DE200908 |
| 9 mm pitches | 4 |
| Tropicalisation | 2 IEC 60068-1 |
| Local signalling | ON, OFF, fault trip |
| Neutral position | Left |
| Device short name | ID |
| Tightening torque | 31.0 lbf.in (3.5 N.m) top or bottom |
| Device application | Distribution |
| Earth-leakage sensitivity | 30 mA |
| Contact position indicator | Yes |
| Locking options description | Padlocking device |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A EN/IEC 61008-1 |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | Idm 250 A EN/IEC 61008-1 |
| Ambient air temperature for storage | -40...140 °F (-40...60 °C) |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | 23...104 °F (-5...40 °C) |
MPN
M9R11225
