Schneider Electric M9R12425
MPNM9R12425
Active

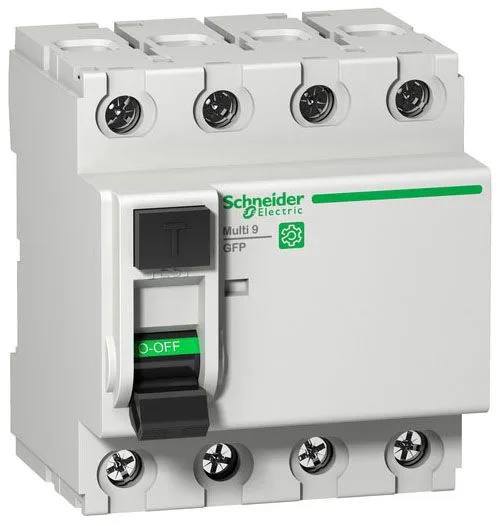

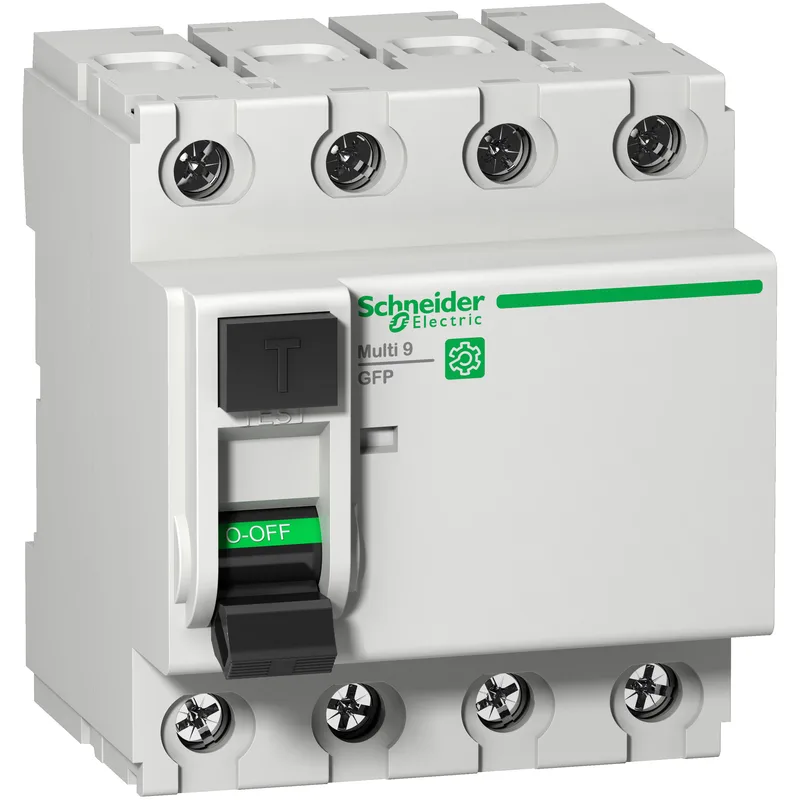

Square D M9R12425 Multi9 GFP 4P 25A 86Ma A 480Y/277V Rccb|Square D M9R12425 Multi9 GFP 4P 25A 86Ma A 480Y/277V Rccb
$378.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Residual current circuit breaker (RCCB) |
| Voltage | 440 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50 Hz 480Y/277 V AC 60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 61008-1 |
| Line rated current | 25 A 104 °F (40 °C) EN/IEC 61008-1 |
| Residual current tripping technology | Voltage independent |
| Rated conditional short-circuit current | Inc 10 kA 100 A gG |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
| Utilisation category | AC-23A EN/IEC 61008-1 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Connections - terminals | Tunnel type terminals top or bottom) 0.002...0.04 in² (1...25 mm²) AWG 18...AWG 3) - flexible Tunnel type terminals top or bottom) 0.002...0.05 in² (1...35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminals top or bottom) 0.002...0.04 in² (1...25 mm²) AWG 18...AWG 3) - flexible with ferrule |
| Pollution degree | 3 |
| Relative humidity | 95 % 131 °F (55 °C) |
| Color | Gray |
| Depth | 2.4 in (60 mm) |
| Width | 2.8 in (72 mm) |
| Height | 3.2 in (81 mm) |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 61008-1 UL 1053 |
| Range | Multi9 |
| Category | US10DE200948 |
| 9 mm pitches | 8 |
| Tropicalisation | 2 IEC 60068-1 |
| Local signalling | ON, OFF, fault trip |
| Neutral position | Left |
| Device short name | GFP |
| Tightening torque | 31.0 lbf.in (3.5 N.m) top or bottom |
| Device application | Distribution |
| Earth-leakage sensitivity | 86 mA UL 1053 100 mA EN/IEC 61008-1 |
| Contact position indicator | Yes |
| Locking options description | Padlocking in OFF position |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1 |
| Earth-leakage protection class | Type A-SI (Super Immunised) |
| Rated breaking and making capacity | Idm 1500 A EN/IEC 61008-1 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
MPN
M9R12425
